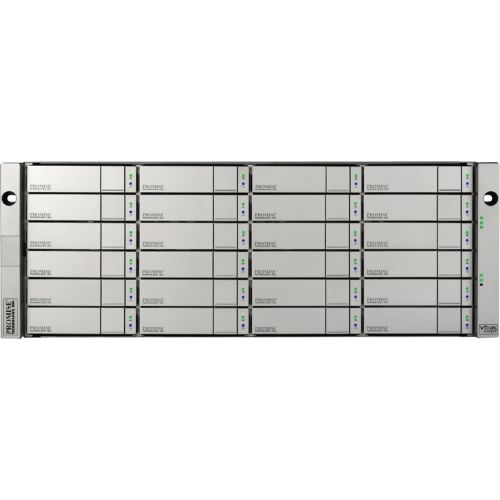

Promise VTrak Ex30f 8Gbps Fibre Channel to 6Gb SAS/SATA High Availability Storage - 24 x HDD Supported - 24 x HDD Installed - 48 TB Installed HDD Capacity - 6Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, 1E, 1, 1E, 5, 6, 10,

Promise VTrak Ex30f 8Gbps Fibre Channel to 6Gb SAS/SATA High Availability Storage - 24 x HDD Supported - 24 x HDD Installed - 48 TB Installed HDD Capacity - 6Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, 1E, 1, 1E, 5, 6, 10, 50, 60 - 24 x Total Bays - 24 x 2.5"/3.5" Bay - 4U - Rack-mountable - RoHS, WEEE Compliance-None Listed Compliance

Enterprise StorageVTrak Ex30 RAID SubsystemsThe PROMISE VTrak x30 Series Series of intelligent, high availability RAID storage subsystems has fundamentally changed storage economics. From purchase and set up, to operation and upgrade, PROMISE storage offers unmatched performance, reliability and value.

Technical Specifications:
Number of Hard Drives Supported: 24
Number of Hard Drives Installed: 24
Total Hard Drive Capacity Installed: 48 TB
Hard Drive RPM: 7200
Number of Total Expansion Bays: 24
Number of 2.5"/3.5" Bays: 24
Controller Type: 6Gb/s SAS, Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1E, 1, 1E, 5, 6, 10, 50, 60
Drive Interface: Near Line SAS (NL-SAS)
Host Interface: Mini-SAS
Fibre Channel: Yes
Input Voltage: 110 V AC, 220 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 750 W
Redundant Power Supply: Yes
Height: 6.9"
Width: 17.6"
Depth: 20"
Form Factor: Rack-mountable
Rack Height: 4U
Weight (Approximate): 60 lb
Platform Supported: Mac, PC
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
