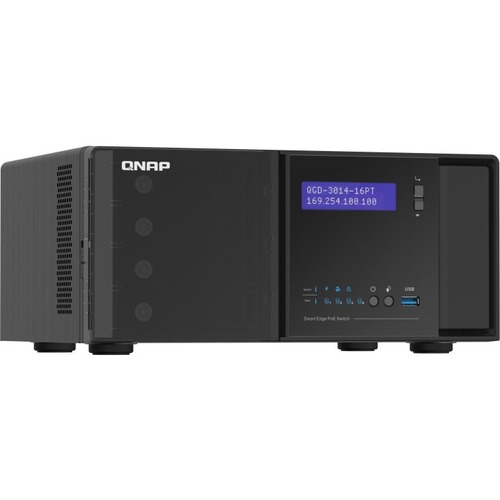

QNAP QGD-3014-16PT Ethernet Switch - 16 Ports - Manageable - 2 Layer Supported - Modular - 140 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Desktop - 2 Year Limited Warranty - TAA Compliance QGD-3014-16PT-8G-US

QNAP QGD-3014-16PT Ethernet Switch - 16 Ports - Manageable - 2 Layer Supported - Modular - 140 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, Desktop - 2 Year Limited Warranty - TAA Compliance

Desktop Smart Edge PoE Switch Cost-optimized intelligent IP surveillance solution The QGD-3014-16PT Desktop Guardian PoE managed switch has sixteen 30-watt Gigabit PoE ports, two Gigabit SFP/RJ45 combo ports and two 2.5GbE host management ports. With a dual-processor design including an Intel® Celeron® J4125 quad-core 1.8GHz processor and four 3.5-inch SATA drive bays, the QGD-3014-16PT meets requirements for high-speed transmission, storage space, and virtual machine performance in surveillance applications. Supporting VMs and QTS for versatile applications such as QVR Pro, HBS 3 and QuWAN, the QGD-3014-16PT combines surveillance deployment, video storage computing, remote backup and WAN optimization to create intelligent surveillance infrastructure and remote backup solutions.Compliant with the IEEE 802.3at PoE+ standard and includes sixteen 30-watt Gigabit PoE ports. Supplies a total power budget of 140 watts to meet the demands of high-powered devices (PDs) and supports smart PoE management. Provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT staff to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.Supports up to four SATA SSDs or HDDs.Supports real-time transcoding and has HDMI 2.0 output for direct 4K 60Hz surveillance video playback.Supports local, remote and cloud backup; centralizes management; and strengthens 3-2-1 backup planning for disaster recovery.Directly host containers and virtual machines to run various applications. Flexibly install QuWAN SD-WAN, virtual routers, firewalls for various networking management applications. Next-Generation Intelligent IP Surveillance and Remote Backup SolutionModern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos. Complete Surveillance Infrastructure Deployment for Smart RetailCombining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.

Technical Specifications:
Total Number of Network Ports: 16
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE, 2 x Gigabit Ethernet TP/SFP Combo
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X, 1000Base-T
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Layer Supported: 2
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 140 W
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 Hz, 60 Hz
Power Source: Power Supply
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Consumption: 250 W
Form Factor: Rack-mountable, Desktop
Weight (Approximate): 22.05 lb
Package Contents:

QGD-3014-16PT Ethernet Switch, Power Cord, 16 x Flat Head Screw (for 3.5" HDD), 12 x Flat Head Screw (for 2.5" HDD), 2 x Drive Tray Keys, Ethernet Cable, Quick Installation Guide (QIG)

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
