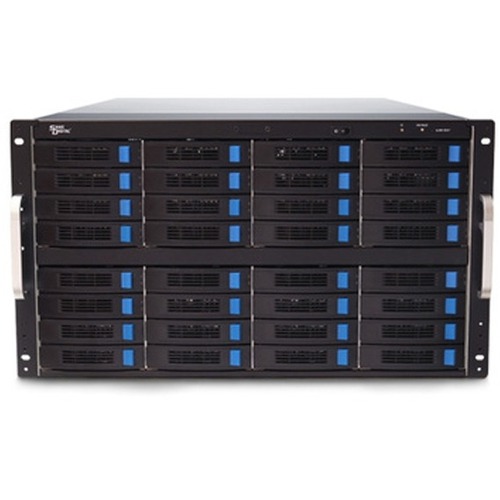

Sans Digital EliteSTOR ES632X12HP Drive Enclosure - 12Gb/s SAS Host Interface - 6U Rack-mountable - 32 x HDD Supported - 32 x 3.5" Bay KT-ES632X12HP

The EliteSTOR ES632X12HP is a complete 6U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES632X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES632X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES632X12HP supports up to 32 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES632X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller''s event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES632X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported. *NEW* DataBolt™ Technology, Maximize 6Gb/s and 3Gb/s hard drives and SSD in 12G performanceTo allow 6Gb/s and 3Gb/s hard drives and SSD transit to newer 12G standard and performance, EliteSTOR SAS expander equipped with LSI DataBolt™ technology allow existing of 6G and 3G hard drives and SSD infrastructure to take advantage of 12Gb/s speed. Only available in 12G SAS expander series, LSI DataBolt™ technology can aggregate bandwidth from 6Gb/s and 3Gb/s hard disk drives and SSD to a 12Gb/s data stream by intelligently buffering data, resulting in over 50% increase. DataBolt™ technology is fully compatible with the 12Gb/s SAS T10 specification. Complete 12G solution with undled with 12G PCIe 3.0 x8 RAID 6 RAID controllerThe systems come with 12G PCIe 3.0 SAS RAID 6 controller. This complete solution provide end to end 12G solutions, from drives to enclosure to the RAID controller card. Bundled controller card equipped with dedicated dual-core 1.2GHz RAID processor and 2GB DDR-3 1866 memory, the overall performance generated over 3,000MB/s, suitable for performance-hungry database application or 4K video editing stations. Critical event such as RAID failure or cooling fan status is communicate via in-band cables (no extra management cable) and provide detail event log and e-mail notification. Other features includes online RAID capacity expansion, online RAID migration, remote or local web-based GUI interface and optional battery backup modules (BBM) for data integrity. Support all major operating systems, includes Windows (Windows Vista, 7, 8, Server 2003 and 2012), MAC (OS X 10.4 or above), or Linux and FreeBSD. Also support in virtual environment including VMware and Microsoft Hyper-V. Thunderbolt 1 or Thunderbolt 2 is supported via Thunderbolt to PCIe conversion box.
