Sans Digital EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) - 4 x HDD Supported - 12 TB Supported HDD Capacity - RAID Supported 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD, 0, 1, 10, 3, 5, Clone Mode (N-Way Mirror) -

Sans Digital EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) - 4 x HDD Supported - 12 TB Supported HDD Capacity - RAID Supported 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD, 0, 1, 10, 3, 5, Clone Mode (N-Way Mirror) - 4 x Total Bays - 4 x 3.5" Bay - 1U - Rack-mountable - RoHS Compliance

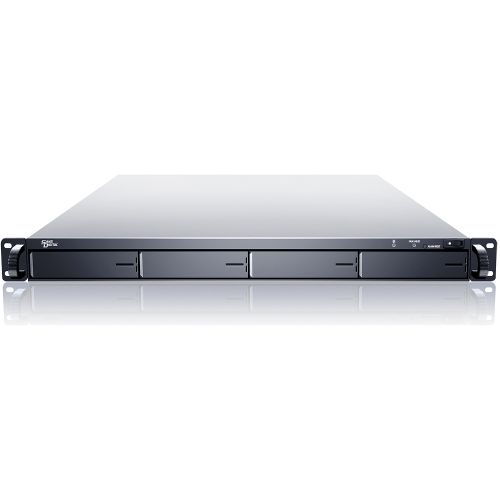

The EliteRAID ER104UT+B is a 4-bay hardware RAID 5 rackmount storage unit that utilizes high performance USB 3.0 and eSATA interfaces to provide over 200MB/s in performance. The included USB 3.0 is backwards compatible with the widely available USB 2.0 port, which is a convenient feature when both USB 3.0 and eSATA connections are unavailable. With built-in RAID 0, 1, 10, 3, 5+hot-spare and JBOD, the ER104UT+B provides hardware RAID redundancy protection against hard drive failures. A brand new RAID mode, CLONE or N-Way Mirror, is also introduced to replicate the saved data throughout each of the installed hard drives. The RAID engine is embedded within the enclosure and performs all RAID parity calculations to reduce CPU utilization from the host computer, RAID controller cards are no longer necessary.

Technical Specifications:
Number of Hard Drives Supported: 4
Total Hard Drive Capacity Supported: 12 TB
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD, 0, 1, 10, 3, 5, Clone Mode (N-Way Mirror)
Drive Interface: Serial ATA
Host Interface: eSATA, USB 3.0
Input Voltage: 110 V AC, 220 V AC
Maximum Power Supply Wattage: 150 W
Height: 1.7"
Width: 19"
Depth: 15"
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 18 lb
Package Contents: EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black), 1 x Power Cord, 1 x eSATA Cable, 1 x USB 3.0 Cable, 1 x Set of Screws, 1 x Quick Installation Manual & CD
Certifications & Standards: FCC, CE, UL
Platform Supported: Mac, PC
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
