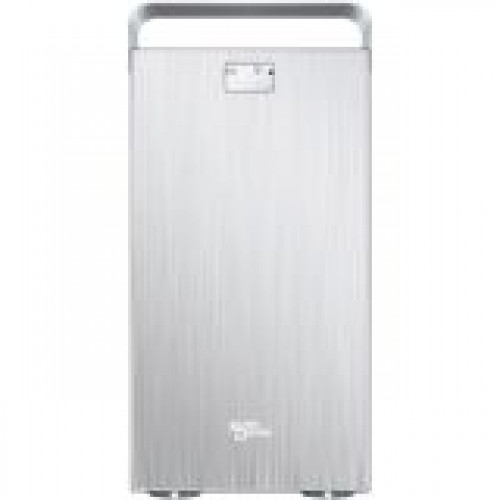

Sans Digital MobileSTOR MS8X+ DAS Array - 8 x HDD Supported - 32 TB Supported HDD Capacity - 8 x SSD Supported - 32 TB Supported SSD Capacity - Serial ATA, 3Gb/s SAS Controller - RAID Supported 1, 5, 6, 10, JBOD, 1, 1+0, 5, 6 - 8 x Total Bays - 8 x 3.5&qu

Sans Digital MobileSTOR MS8X+ DAS Array - 8 x HDD Supported - 32 TB Supported HDD Capacity - 8 x SSD Supported - 32 TB Supported SSD Capacity - Serial ATA, 3Gb/s SAS Controller - RAID Supported 1, 5, 6, 10, JBOD, 1, 1+0, 5, 6 - 8 x Total Bays - 8 x 3.5" Bay - Tower - RoHS Compliance-RoHS Compliance

The MobileSTOR MS8X+ is a 8-bay tower with two mini-SAS connections, for high transfer rates for 6G SAS, SATA hard drives and SSD. Utilizing two high bandwidth mini-SAS (SFF-8088) cabling, the MS8X+ supports 6Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. The mini-SAS ports combine eight hard drives connections into two, reducing possible points of failures, while preserving uninterrupted data transfer. The TR8X+ also supports SATA and SAS drives, allowing users the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundles options are available. When utilizing a SAS or SATA RAID controller, the unit could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressed 10-bit high definition video under various RAID modes, with performance over 1000MB/s in RAID applications.

Technical Specifications:
Number of Hard Drives Supported: 8
Total Hard Drive Capacity Supported: 32 TB
Number of Solid State Drive Supported: 8
Total Solid State Drive Capacity Supported: 32 TB
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Controller Type: Serial ATA, 3Gb/s SAS
RAID Supported: Yes
RAID Levels: 1, 5, 6, 10, JBOD, 1, 1+0, 5, 6
Host Interface: Mini-SAS
Input Voltage: 110 V AC, 220 V AC
Maximum Power Supply Wattage: 300 W
Height: 13.4"
Width: 5.9"
Depth: 13.4"
Form Factor: Tower
Weight (Approximate): 20 lb
Package Contents: MobileSTOR MS8X+ DAS Array, 8 x Hard Drive Trays, 1 x Power Cord, 2 x Mini-SAS to Mini-SAS Cables, 1 x Set of Screws, 1 x Quick Installation Manual
Certifications & Standards: CE, FCC, UL
Platform Supported: PC, Mac
Environmentally Friendly: Yes
Environmental Certification: RoHS
