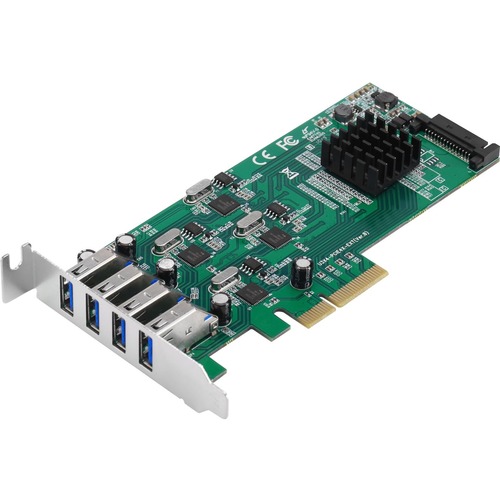

SIIG 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core - PCI Express 2.0 x4 - Plug-in Card - 4 USB Port(s) - 4 USB 3.0 Port(s) - UASP Support - PC JU-P40811-S1

SIIG 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core - PCI Express 2.0 x4 - Plug-in Card - 4 USB Port(s) - 4 USB 3.0 Port(s) - UASP Support - PC

Adds four independent external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCI Express (PCIe) enabled desktop computer Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps Industry recognized high performance Renesas uPD720202 chipset Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps) Compliant with Intel''s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 Compliant with PCIe 2.0 standard Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only) Supports PCI Bus Power Management Interface Specification Revision 1.2 Low-profile bracket design fits lower size system form factor with included low profile bracket Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes

Warning: This product can expose you to chemicals including Di-isodecylphthalate, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express 2.0 x4
UASP Support: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
Product Color: Green
Form Factor: Plug-in Card
Height: 0.8"
Width: 5.9"
Depth: 3.2"
Weight (Approximate): 2.40 oz
Package Contents:

4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core, Driver CD, Quick Start Guide

Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
