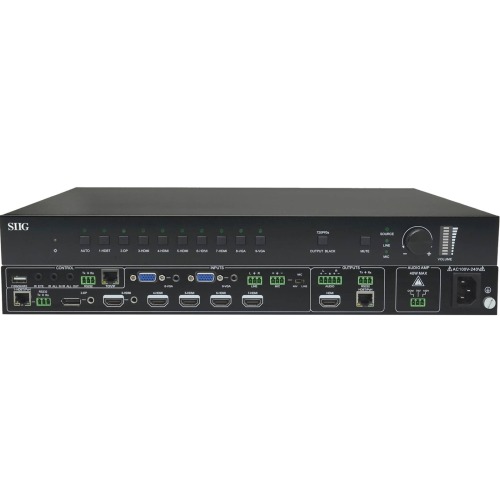

SIIG 9x1 HDBaseT 4K Scaler Switcher - 4096 x 2160 - 4K - Twisted Pair - 9 x 1 - 1 x HDMI Out - 1 x DisplayPort In CE-H24311-S1

SIIG 9x1 HDBaseT 4K Scaler Switcher - 4096 x 2160 - 4K - Twisted Pair - 9 x 1 - 1 x HDMI Out - 1 x DisplayPort In

Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4 Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p Device switching controllable via push buttons, IR remote, RS232 and GUI Supports Bi-directional IR control and RS232 pass-through

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Cable
Number of Input Devices Supported: 9
Device Supported: Display
Number of Displays Supported: 1
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
HDMI In: Yes
HDMI Out: Yes
VGA In: Yes
DisplayPort: Yes
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 3
Number of USB Ports: 1
Number of HDMI Inputs: 5
Number of HDMI Outputs: 1
Number of VGA Inputs: 2
Number of DisplayPort Inputs: 1
Media Type Supported: Twisted Pair
Maximum Operating Distance: 328.08 ft
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.2"
Depth: 10.9"
Weight (Approximate): 7.72 lb
Package Contents:

9x1 HDBaseT 4K Scaler Switcher, HDBaseT Receiver, IR Receiver, IR Emitter, IR Remote, Power Cord, 4 x Switcher Plastic Cushions, 4 x Receiver Plastic Cushions , 2 x Switcher Mounting Ears, 6 x Screws, 2 x Receiver Mounting Ears , 2 x Screws, 6 x 3-pin phoenix connectors, 5-pin phoenix connectors, 2 x RS-232 cable (3-pin to DB9), User manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
