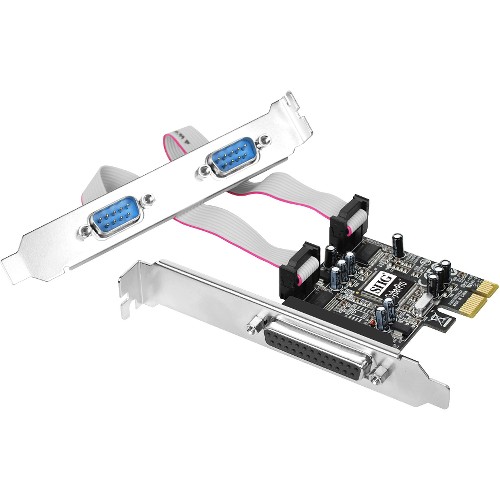

SIIG Cyber JJ-P21211-S1 3-port PCI Express Serial/Parallel Combo Adapter - 2 x 9-pin DB-9 Male RS-232 Serial, 1 x 25-pin DB-25 Male IEEE 1284 Parallel PCI Express x1 - 1 Pack - RoHS Compliance JJ-P21211-S1

SIIG Cyber JJ-P21211-S1 3-port PCI Express Serial/Parallel Combo Adapter - 2 x 9-pin DB-9 Male RS-232 Serial, 1 x 25-pin DB-25 Male IEEE 1284 Parallel PCI Express x1 - 1 Pack - RoHS Compliance

SIIG''s Cyber 2S1P PCIe adapter card is designed to add two 9-pin RS232 serial ports and one 25-pin IEEE 1284 parallel port to your current PCIe-enabled desktop computer. This Serial Parallel Combo all-in-one PCIe adapter features two High-speed 16C650 UART serial ports supporting data transfer rates of up to 16 Mb/s and one parallel port supporting ECP, EPP and Buffered SPP parallel port modes. It is a cost-effective and reliable solution to connect a wide variety of serial and parallel devices. The Cyber 2S1P PCIe is powered by Moschip chipset and fully conforms to PCI Express Base Specification, Revision 1.1 and IEEE 1284-1994 parallel port standards. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant. The Cyber 2S1P PCIe is fully compatible with a wide variety of Windows operating systems and is backed by SIIG''s lifetime warranty.

Warning: This product can expose you to chemicals including Diisononylphthalate(DINP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express x1
UART Type: 16C650
Parallel Port Modes: ECP, EPP, SPP
Platform Supported: PC
Form Factor: Plug-in Card
Package Contents: Cyber JJ-P21211-S1 3-port PCI Express Serial/Parallel Combo Adapter, 2-port Serial Connector Bracket, Driver CD, User's Manual
Additional Information: Compliant with PCI Express Base Specification, Revision 1.1, Serial interface: Two 16C650 UART 9-pin serial ports, Supports up to 16Mbps, Parallel interface: Compliant with IEEE 1284-1994 parallel port standard, Supports EPP, ECP and Buffered SPP mode Requirements, Desktop PC with an available PCIe slot, Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
