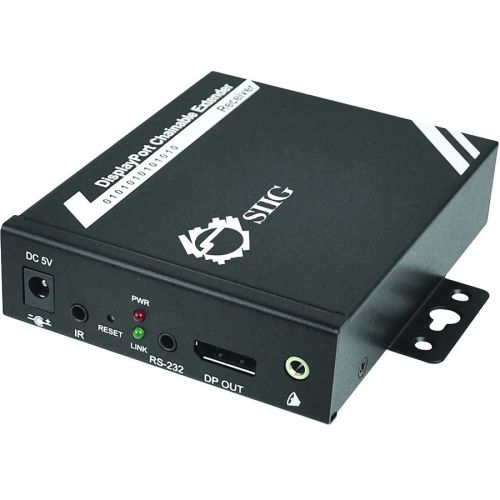

SIIG DisplayPort to CAT5e Daisy Chain HD with RS-232 & IR - Repeater - 1 Output Device - 328.08 ft Range - 3 x Network (RJ-45) - DisplayPort - Serial Port - Full HD - 1920 x 1080 - RoHS Compliance CE-DP0611-S1

SIIG DisplayPort to CAT5e Daisy Chain HD with RS-232 & IR - Repeater - 1 Output Device - 328.08 ft Range - 3 x Network (RJ-45) - DisplayPort - Serial Port - Full HD - 1920 x 1080 - RoHS Compliance

SIIG''s DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater is designed to receive and extend DisplayPortTM signal from a transmitter to a display at greater distance using economical CAT5/6 cable. This repeater offers RS-232 communication and IR control to execute commands conveniently. And it enables cascade connection to allow for an extensive network of displays setup. Fully HD 1080p resolution is supported, no software or driver is required to install, and the built-in mounting mechanism makes integration convenient and tidy. It is a cost-effective DisplayPort to CAT5e extender solution to extend and broadcast high quality video and audio signal to the remote display(s) utilizing inexpensive network cable.

Technical Specifications:
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Daisy Chain: Yes
Maximum Operating Distance: 328.08 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
DisplayPort: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 3
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Input Voltage: 120 V AC, 230 V AC
Product Color: Black
Product Material: Metal
Receiver Height: 3.58"
Receiver Width: 4.53"
Receiver Depth: 1.10"
Receiver Weight (Approximate): 13.76 oz
Package Contents: 1 x Video Console, Power Adapter 5V/2A, 3.5mm to RS-232 Cable, IR Rceiver Cable, Installation Guide
Additional Information: Extend DisplayPort signals up to 100m over Cat5e/6 cabling, Cascade receivers up to 10 layers, Supports video high resolution Full HD 1080p, 1920x1080@60Hz, Supports local DisplayPort and audio output, Supports RS-232 (Serial) and IR (Infrared remote), Hot pluggable, Metal housing with mounting mechanism
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
