SIIG DP eSATA 6Gb/s 2-Port PCIe i/e - Serial ATA/600 - PCI Express - Plug-in Card - 2 Total SATA Port(s) - 1 SATA Port(s) Internal - 1 SATA Port(s) External - RoHS Compliance SC-SA0N11-S1

SIIG DP eSATA 6Gb/s 2-Port PCIe i/e - Serial ATA/600 - PCI Express - Plug-in Card - 2 Total SATA Port(s) - 1 SATA Port(s) Internal - 1 SATA Port(s) External - RoHS Compliance

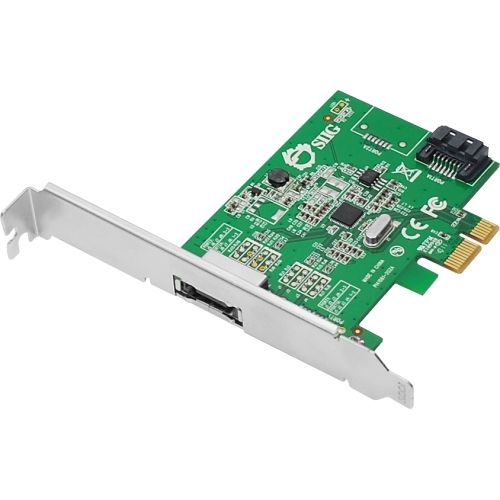

SIIG''s DP eSATA 6Gb/s 2-Port PCIe i/e is a high performance eSATA host adapter designed to add two (one internal and one external) Serial ATA 6Gb/s channels to your PCIe-equipped computer for additional hard disk drive connections. It supports SATA hard disk drives up to 4TB, ATA/ATAPI-7 specification as well as port multiplier. This dual-profile host adapter can be installed in standard height or low profile chassis with the included bracket. It is the ideal solution to enable fast, large volume data transferring for your bandwidth-hungry applications.

Technical Specifications:
Host Interface: PCI Express
Controller Type: Serial ATA/600
Total Number of SATA Ports: 2
Number of SATA Ports (Internal): 1
Number of SATA Ports (External): 1
Height: 3.5"
Width: 4.8"
Thickness: 0.8"
Form Factor: Plug-in Card
Card Height: Dual-profile
Weight (Approximate): 2.40 oz
Package Contents: DP eSATA 6Gb/s 2-Port PCIe i/e, Spare Low Profile Bracket, SATA Data Cable, Driver CD, Installation guide
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
