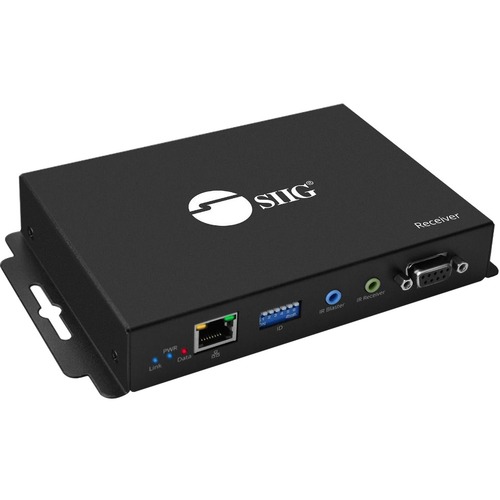

SIIG HDMI 2.0 Over IP Matrix and Video Wall - Receiver - 1 Input Device - 1 Output Device - 394 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 5e - TAA Compliant - TAA Compliance CE-H25311-S1

SIIG HDMI 2.0 Over IP Matrix and Video Wall - Receiver - 1 Input Device - 1 Output Device - 394 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 5e - TAA Compliant - TAA Compliance

Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly HDMI 2.0a and HDCP 2.2 compliant Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture Easy DIP switch matching for multi-casting group configuration Supports full frequency IR signal from 20KHz to 60KHz Full Duplex RS-232 control up to 115,200 bps Supports 180° and 270° clockwise image rotation Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 394 ft
Graphics Modes: 4K
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Product Color: Black
Receiver Height: 1.13"
Receiver Width: 4"
Receiver Depth: 7.09"
Receiver Weight (Approximate): 1.07 lb
Package Contents:

HDMI 2.0 Over IP Matrix and Video Wall - Receiver , Power Adapter 5V/2A, 1 x IR Receiver Cable, 2 x Screw Kit, Insert Card, User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
