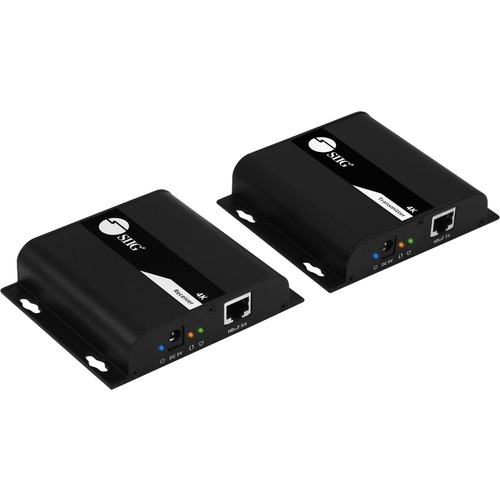

SIIG HDMI 4K30Hz HDbitT over IP Extender - 120m - 1 Input Device - 1 Output Device - 393.70 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 CE-H25D11-S1

SIIG HDMI 4K30Hz HDbitT over IP Extender - 120m - 1 Input Device - 1 Output Device - 393.70 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6

Extends HDMI audio/video signals over cost effective CAT6 cable, while maintaining signal strength and superior audio/video quality With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Additional Receivers (CE-H25E11-S1) are sold separately One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation

Warning: Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 393.70 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 0.94"
Transmitter Width: 3.70"
Transmitter Depth: 4.45"
Receiver Height: 0.94"
Receiver Width: 3.70"
Receiver Depth: 4.45"
Transmitter Weight (Approximate): 5.92 oz
Receiver Weight (Approximate): 5.92 oz
Package Contents:

1 x Transmitter, 1 x Receiver, 2 x Power Adapters , 1 x IR Blaster Cable , 1 x IR Receiver Cable, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
