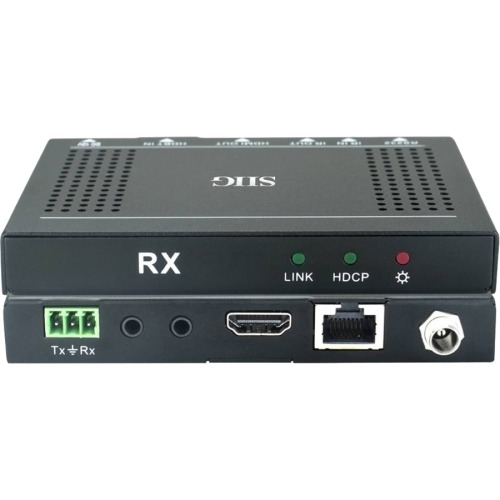

SIIG HDMI HDBaseT 4K Receiver (RX) - 1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountable CE-H24511-S1

SIIG HDMI HDBaseT 4K Receiver (RX) - 1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountable

Receives HDMI audio and video signals, RS232 control, IR control, PoH up to 70 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology 4K HDBaseT Receiver unit designed to work in conjunction with other SIIG components Supports transmission distances up to 70m at 1080p and 40m at 4K resolutions Compliant with HDMI 1.4 and HDCP 2.2 Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D lSupports Bi-directional PoH function to power the Transmitter and Receiver using only one power adapter connected to either unit Supports CEC pass-through, Bi-directional IR, RS232 control

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Receiver Height: 0.64"
Receiver Width: 4.52"
Receiver Depth: 4.30"
Form Factor: Rack-mountable
Receiver Weight (Approximate): 10.72 oz
Package Contents:

HDMI HDBaseT 4K Receiver (RX), 2 x Mounting Ears, 4 x Screw kit , 4 x Plastic Cushions , RS-232 Cable, User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
