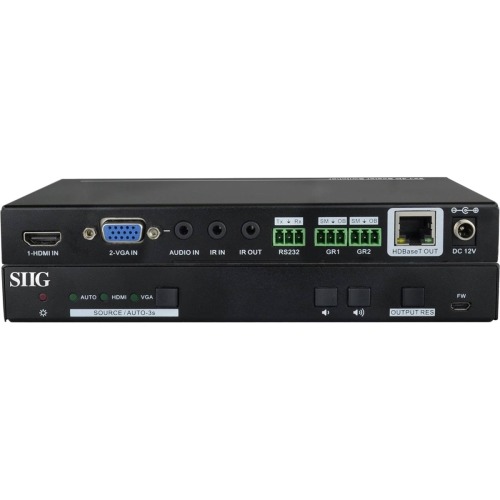

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher - CAT5e/6 - 70 Meters CE-H24211-S1

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher - CAT5e/6 - 70 Meters

Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control Scales and switches an HDMI or VGA input to an HDBaseT output Features manual or auto device switching options Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4 Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p Supports Bi-directional IR extension, RS232 control, advanced EDID management Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Cable
Number of Input Devices Supported: 2
Device Supported: Display, Blu-ray Disc Player, DVD Player, Gaming Console, TV, Computer
Number of Displays Supported: 1
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
HDMI In: Yes
VGA In: Yes
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 1
Number of USB Ports: 1
Number of HDMI Inputs: 1
Number of VGA Inputs: 1
Media Type Supported: Twisted Pair
Maximum Operating Distance: 229.66 ft
Height: 0.9"
Width: 7.7"
Depth: 3.9"
Weight (Approximate): 1.77 lb
Package Contents:

HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher, Power Adapter, 2 x Mounting Ears , 4 x Screws , 4 x Plastic Cushions , RS-232 Cable, User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
