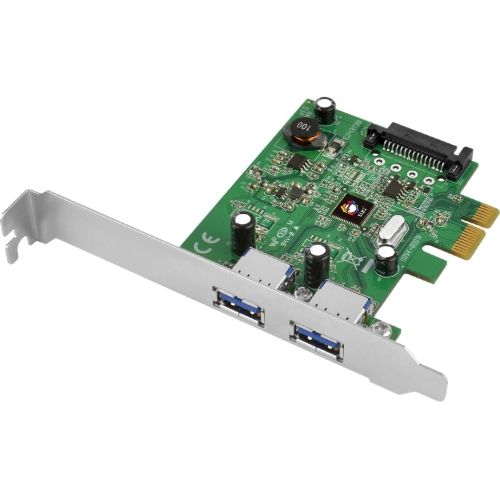

SIIG USB 3.1 2-Port PCIe Host Adapter(1x) - Type-A - PCI Express 3.0 - Internal - 2 USB Port(s) - 2 USB 3.1 Port(s) - PC, Linux JU-P20B12-S1

SIIG USB 3.1 2-Port PCIe Host Adapter(1x) - Type-A - PCI Express 3.0 - Internal - 2 USB Port(s) - 2 USB 3.1 Port(s) - PC, Linux

SIIG''s USB 3.1 2-Port PCIe Host Adapter(1x) - Type-A enables you to enhance your desktop computer with the latest USB 3.1 technology, delivering up to 10Gb/s data transfer rates (two times faster than USB 3.0). It adds two USB 3.1 Type-A ports to your desktop computer via an available PCI Express (x1) slot. Each USB 3.1 port supports independent over-current protection to protect the connected device and a built-in SATA power connector is available to ensure sufficient power is supplied when needed. It is an excellent adapter card to connect high-bandwidth USB devices such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more.

Technical Specifications:
Host Interface: PCI Express 3.0
Total Number of USB Ports: 2
Number of USB 3.1 Ports: 2
Product Color: Green
Form Factor: Internal
Height: 3.2"
Width: 4.7"
Depth: 0.8"
Weight (Approximate): 1.60 oz
Package Contents:

USB 3.1 2-Port PCIe Host Adapter(1x) - Type-A, Spare Low Profile Bracket, Installation Guide

Additional Information:

Complies with PCI-Express 3.0 specification with high performance Asmedia ASM1142 chipset, The latest USB 3.1 technology delivers data transfer rate up to 10Gb/s (up to two times faster than USB 3.0), Supports plug-n-play, hot-swappable, and backwards compatible with USB 1.1 / 2.0 / 3.0, Each USB 3.1 port provides up to 900mA power output to better support the power consumption of your connected device, Each USB 3.1 port features independent over-current protection to further protect your connected device, Dual-profile bracket design (Full and Low Profile) fits different system form factor with included low profile bracket,

Platform Supported: PC, Linux
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
