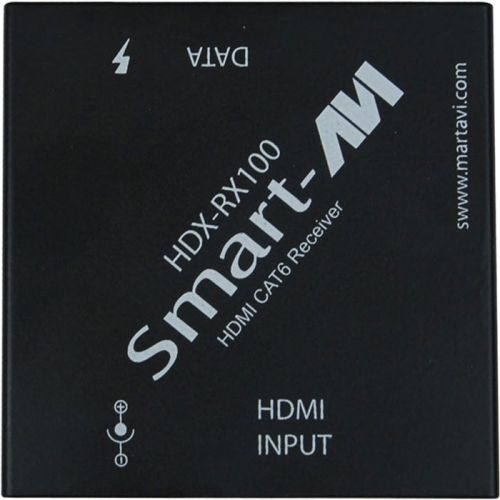

Smart Board SmartAVI Receiver for HDMI Over a Single CAT6 Cable - 1 Output Device - 150 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 HDX-RX100S

SmartAVI Receiver for HDMI Over a Single CAT6 Cable - 1 Output Device - 150 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 6

SmartAVI''s HDX-400 is an innovative solution to extending any HDMI signal - be it a gaming console, Blu-ray player, computer, etc. - over inexpensive CAT6 STP cabling up to 150 feet away to three remote display screens and one local screen for real-time monitoring of content.This is the perfect solution for broadcasting high-definition media easily and inexpensively from a source to three display screens for customers to view while keeping the CPU in a remote, secure location, such as a computer room or the back office of a business. Utilizing the HDX-400, users can monitor what''s being shown to customers in real-time via a local display, while retaining full control over the CPU or HDMI source, accessible only by key personnel. The HDX-400 utilizes three HDX-100 receivers and enables the user to send the same signal from their local display to three remote displays. The HDX-100 is a compact unit that is easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into a user''s infrastructure very

Technical Specifications:
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 150 ft
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Receiver Height: 1"
Receiver Width: 2.75"
Receiver Depth: 3.88"
Receiver Weight (Approximate): 9.60 oz
Package Contents:

Receiver for HDMI over a single CAT6 Cable, PS5VD2A Power Supply, 1 x Quick Start and Installation Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
