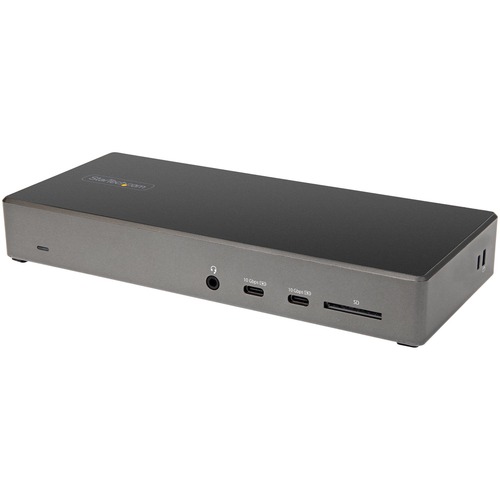

Startech.Com USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps) - USB-C docking station 10Gbps - Dual or Triple Monitor MST USB C Dock 4K 60Hz (2x DisplayPort and 1x HDMI) D

StarTech.com USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps) - USB-C docking station 10Gbps - Dual or Triple Monitor MST USB C Dock 4K 60Hz (2x DisplayPort and 1x HDMI) DP 1.4 Alt-Mode w/ DSC/HBR3 - 100W Power Delivery, SD slot, Ethernet - Windows-based laptops - 2xA 5Gbps, 2xA (USB 2.0), 2xC 10Gbps - Driverless

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.HDMI & DisplayPort for Multiple Monitor Outputs This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. DP 1.4 HBR3 with DSC EnabledDP 1.4 HBR3 (without DSC)DP 1.2 HBR2 Triple Display Up to 4096 x 2160 @ 30HzUp to 1920 x 1080 @ 60HzUp to 1600 x 900 @ 60HzDual Display Up to 4096 x 2160 @ 60Hz HDMI port + DP port or 2 DP portsUp to 2560 x 1440 @ 60HzUp to 1920 x 1080 @ 60HzSingle DisplayUp to 4096 x 2160 @ 60HzUp to 3840 x 2160 @ 60HzUp to 3840 x 2160 @ 30HzPower & Charge with 100W Power Delivery Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage. Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected. Integrated 6-Port USB Hub & SD Card Reader This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage. 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On) 2x USB-A 3.2 Gen 1 - 5 Gbps 2x USB-A 2.0 - 480 Mbps SD 4.0 Card Reader Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic. Additional Security Features This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock. Connected Device Transparency with the StarTech.com MAC Address Changer Utility The DK31C2DHSPD includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer''s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

Technical Specifications:
Connectivity Technology: Wired
Device Supported: Notebook/Tablet/Workstation/Monitor
Memory Card Reader: Yes
Memory Card Supported: SD
Number of Displays Supported: 3
Screen Mode Supported: 4K
Supported Resolutions: 4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 900
Ethernet Technology: Gigabit Ethernet
Host Interface: USB 3.1 Type C
Total Number of USB Ports: 6
Number of USB 3.1 Type-C Ports: 1
Number of USB 3.1 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 2 x USB Type-C (Fast-Charge, 24 pin) USB 3.0, 1 x USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Operating System Supported: Windows, Chrome OS
Maximum Power Supply Wattage: 100 W
Product Color: Black, Space Gray
Height: 1.20"
Width: 3.50"
Weight (Approximate): 10.60 oz
Package Contents:

Docking Station, AC Adapter, 2 x Power Cable NA/JP & ANZ, 1 x USB-C Cable (1 m), Quick-Start Guide

Kensington Security Slot: Yes
Compatibility: Compatible Notebook/Tablet PC:

Lenovo X1 Carbon, Lenovo ThinkPad P Series, Dell Latitudes Series, Dell Precision Series, Dell XPS 15, HP Spectre, HP ZBook, Google Chromebook

Brand Compatibility: Lenovo, Dell, HP, Google
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS, REACH
Country of Origin: Thailand
