Startech.Com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - Parallel PCIe card controller w/ DB25 parallel port - SPP/Byte/ECP modes - Works w/ IEEE 1284 up to 2.5Mbps - Printe

StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - Parallel PCIe card controller w/ DB25 parallel port - SPP/Byte/ECP modes - Works w/ IEEE 1284 up to 2.5Mbps - Printer/LPT port expansion adapter card - Asix AX99100 - PCI Express Base 1.1/PCI Pwr Mgmt 1.2 - Full/low-profile PCI-e x1 slot - Win/Linux

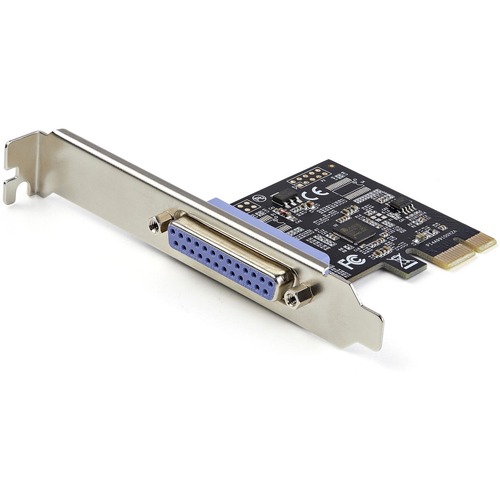

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system. Adds a Parallel Port to Your Desktop Computer The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps. Wide Installation Compatibility This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher). PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals'' choice for over 30 years.

Technical Specifications:
Host Interface: PCI Express 2.0 x1
Platform Supported: PC, Linux
Number of Parallel Ports (External): 1
Form Factor: Plug-in Card
Card Height: Half-height/Low-profile
Height: 0.7"
Width: 2.9"
Weight (Approximate): 1.59 oz
Package Contents:

1-Port Parallel PCIe Card, Full Profile Bracket, Low Profile Bracket, Quick Start Guidel

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: China
