Startech.Com 1 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Su

StarTech.com 1 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Supports 128-byte depth FIFO per transmitter and receiver - UPGRADED CAPABILITIES: Add an RS232 DB9 connection to the PCIe slot of your server- INDUSTRY COMPLIANT: RS232 serial port is PCI Express 1.1 compliant ensuring reliability by reducin - TAA Compliance

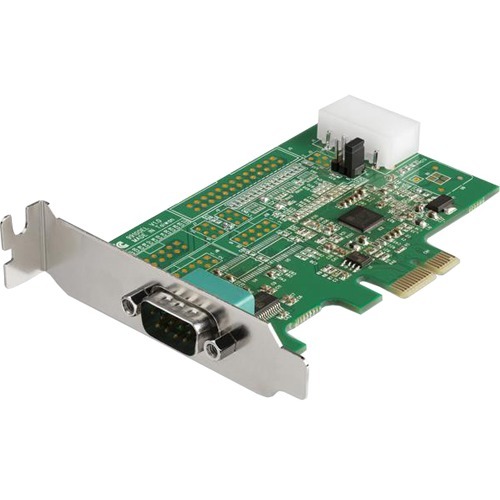

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 128-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Technical Specifications:
Host Interface: PCI Express x1
UART Type: 16950
Platform Supported: PC, Linux
Number of Serial Ports (External): 1
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 5.9"
Width: 2.6"
Length: 3.9"
Weight (Approximate): 1.60 oz
Package Contents:

1-Port PCI Express Serial Card with 16950 UART - Low-Profile, 1 x Full-Profile Bracket, 1 x User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: Taiwan
