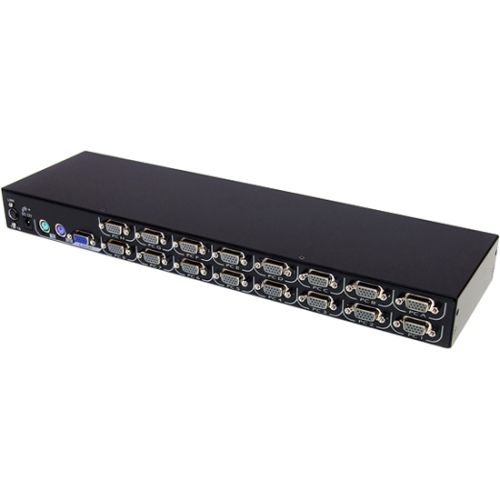

Startech.Com 16-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console - 16 x 1 - 16 x HD-15 - 1U - Rack-mountable - TAA Compliance CAB1631HD

StarTech.com 16-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console - 16 x 1 - 16 x HD-15 - 1U - Rack-mountable - TAA Compliance

This 16-port KVM module works with the StarTech.com series of rack-mounted LCD consoles, enabling you to control sixteen servers from one location. You can upgrade a single port LCD console or replace a faulty console (see our list of compatible LCD consoles below).With independent VGA and PS/2 keyboard and mouse ports, you can also use this switch as a standalone KVM, creating a discreet rack-mountable KVM solution. Increase your productivity By adding this KVM module to your rack mount LCD console you can control sixteen individual computers or servers from a centralized location. Hassle-free integration Because the KVM module works with your existing LCD console, you can ensure simple integration into your server room setup. To ensure compatibility this KVM module supports any operating system has been extensively tested in Windows®, Mac and Linux environments. You can also connect to both PS/2 and USB servers using StarTech.com''s convenient line of interface specific KVM cables. The cables come in variety of lengths with PS/2 or USB depending on your specific server requirements. Compatible LCD consoles North America RACKCOND1701 (add 16port module)RACKCONS1908 (replace original module)RACKCONS1916 (replace original module)RACKCONS1708 (replace original module)RACKCONS1716 (replace original module) United Kingdom RACKCOND1701(add 16 port module)RKCONS1716GB(replace original module)RKCONS1908GB(replace original module) Europe RACKCOND1701(add 16port module)RKCOND1701FR - French Keyboard (add 16port module) The CAB1631HD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Number of Computers Supported: 16
Number of Local Users Supported: 1
Minimum Scan Interval: 3 Second
Graphic Mode: VGA
Maximum Video Resolution: 1920 x 1440
PS/2 Port: Yes
VGA: Yes
Number of PS/2 Ports: 2
Number of VGA Ports: 1
Input Voltage: 120 V AC, 230 V AC
Input Voltage Range: 110V AC to 240V AC
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7"
Width: 17.2"
Depth: 7"
Package Contents:

16 Port KVM Module, 1 x Instruction Manual, 2 x Mounting Brackets (w/ Screws)

Compatibility: Supports IntelliMouse (Pro), Plug and Play
Additional Information: Hot-pluggable feature allows computers to be added or removed without shutting down, Auto Scan Mode lets you switch between computers for easy monitoring, Each computer name can be defined via the OSD menu, Uses StarTech.com tangle-fee KVM cables, Operating system independent, No software or drivers required, Compact design rear cable connections provide unmatched space saving
Platform Supported: PC, Mac, Sun
Environmentally Friendly: Yes
Environmental Certification: REACH, RoHS, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
