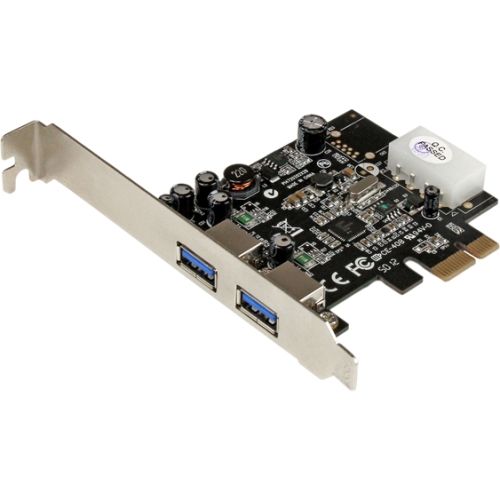

Startech.Com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - PCI Express x1 - Plug-in Card - 2 USB Port(s) - 2 USB 3.0 Port(s) - PC, Linux PEXUSB3S25

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - PCI Express x1 - Plug-in Card - 2 USB Port(s) - 2 USB 3.0 Port(s) - PC, Linux

Add 2 SuperSpeed USB 3.0 ports to your PCI Express-enabled PC. The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows® 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. More from the Manufacturer

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express x1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Product Color: Black
Form Factor: Plug-in Card
Height: 4.8"
Width: 0.7"
Length: 2.6"
Weight (Approximate): 3.17 oz
Additional Information: OS Compatibility:

Windows® Vista, 7, 8, 8.1, 10, Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 , Linux 2.6.31 to 4.11.x LTS versions only

Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: China
TAA Compliant: Yes
