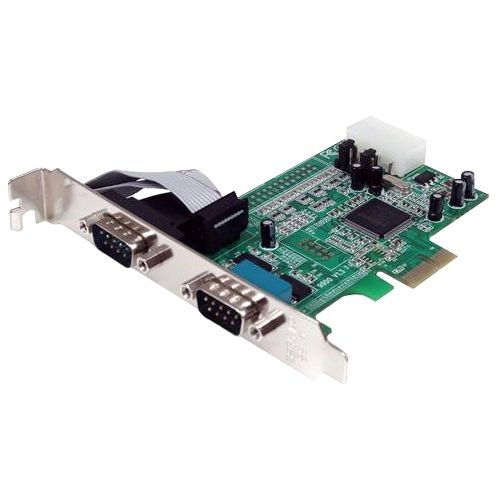

Startech.Com 2 Port PCIe Serial Adapter Card with 16550 - 2 x 9-pin DB-9 Male RS-232 Serial PCI Express - RoHS, TAA Compliance PEX2S553

StarTech.com 2 Port PCIe Serial Adapter Card with 16550 - 2 x 9-pin DB-9 Male RS-232 Serial PCI Express - RoHS, TAA Compliance

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards. The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above. Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case. This product is a replacement for our PEX2S552 card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express x1
Data Transfer Rate: 460.8kB/s
UART Type: 16550
Platform Supported: PC, Mac, Linux
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Card Height: Half-height/Low-profile
Height: 0.8"
Width: 4.7"
Length: 4.1"
Weight (Approximate): 2.20 oz
Package Contents:

2 Port PCIe Serial Adapter Card with 16550, Low Profile Brackets, Driver CD, Instruction Manual

Additional Information:

Native single-chip, single lane PCI Express chipset delivers true PCIe performance., Standard and low profile/half-height bracket included to ensure fitment in any system., Easy to install and use with full step-by-step instructions saving time and hassle.

OS Compatibility:

Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10, Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 , Mac OS X® 10.4 to 10.10, Linux kernel 2.6.x to 4.11.x LTS Versions only

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
