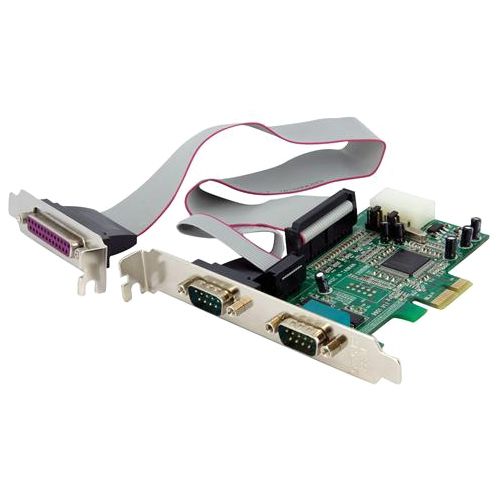

Startech.Com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - 2 x 9-pin DB-9 Male Parallel - RoHS, TAA Compliance PEX2S5531P

StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - 2 x 9-pin DB-9 Male Parallel - RoHS, TAA Compliance

Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot. The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.Compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express x1
Data Transfer Rate: 1.5MB/s Parallel Port, 460.8kB/s Serial Port
UART Type: 16550
Platform Supported: PC, Mac, Linux
Number of Parallel Ports (External): 1
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Card Height: Dual-profile
Height: 0.8"
Width: 4.7"
Length: 4.1"
Weight (Approximate): 4 oz
Package Contents:

2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART, Parallel Port (with Ribbon Cable), Low Profile Brackets, Driver CD, Instruction Manual

Additional Information: Native single-chip, single lane PCI Express chipset delivers true PCIe performance., Standard and low profile/half-height bracket included to ensure fitment in any system., Easy to install and use with full step-by-step instructions saving time and hassle., Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS, Windows Server® 2012, 2008 R2, 2003, Mac OS® 10.4 - 10.6, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
