Startech.Com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Add two RS232 and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - 4 Port PCI Express PCIe Serial Combo Card - 4 port (2 x RS232, 2 x RS422/

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Add two RS232 and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - 4 Port PCI Express PCIe Serial Combo Card - 4 port (2 x RS232, 2 x RS422/485) serial combo card - PCI Express RS485 / PCIe RS485 / PCI Express RS422 / PCIe RS422 serial combo card - Dual Profile PCIe serial card adapter with breakout cable - RS232 data transfer rates up to 460 Kbps - PCIe serial combo card suppo - RoHS, TAA, WEEE Compliance

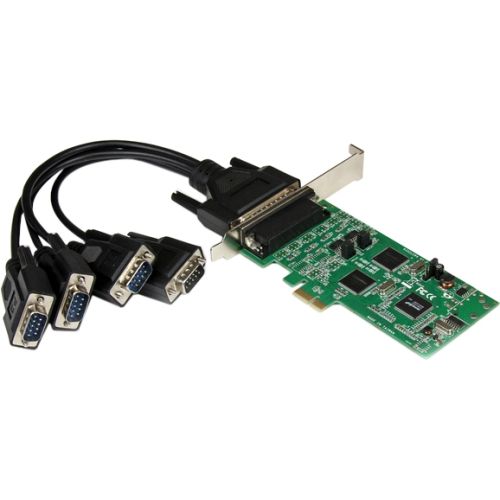

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes. A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express x1
Maximum Data Transfer Rate: 3.59 Mbit/s
Platform Supported: PC
Ports Expandability: 4 x DB-9 RS-232/422/485 - Serial, Via Cable
Form Factor: Plug-in Card
Height: 2.7"
Width: 0.6"
Weight (Approximate): 2.40 oz
Package Contents:

4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485, 1 x Breakout Cable, 1 x Low Profile Bracket, 1 x Driver CD, 1 x Instruction Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, REACH
Country of Origin: Taiwan
TAA Compliant: Yes
