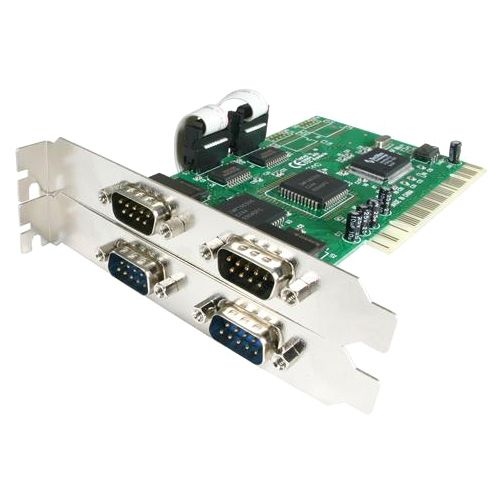

Startech.Com 4 Port PCI RS232 Serial adapter card - PCI - serial - 4 ports - Serial adapter - PCI - RS-232 x 4 PCI4S550N

StarTech.com 4 Port PCI RS232 Serial adapter card - PCI - serial - 4 ports - Serial adapter - PCI - RS-232 x 4

The PCI4S550N 4-port PCI Serial card turns an available PCI slot into four RS232 serial ports - a cost-effective solution for connecting any new or old serial peripheral, with support for data transfer rates of up to 115Kbps.The PCI Serial card is a perfect solution for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system without having to upgrade your peripheral devices for compatibility with newer standards (e.g. USB).Saving time and hassle, the Serial PCI card is plug-and-play ready, and can be installed in minutes, supportaing Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95, NT4, 3.1, DOS® and Linux® operating systems. Plus, the serial card offers IRQ sharing to help ensure stability and consistent performance, guaranteeing convenient, hassle-free connections.Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Technical Specifications:
Host Interface: PCI
Data Transfer Rate: Up to 920kB/s
UART Type: 16550
Platform Supported: PC, Linux
Number of Serial Ports (Internal): 2
Form Factor: Plug-in Card
Height: 4.7"
Width: 0.8"
Length: 4.7"
Weight (Approximate): 2.60 oz
Package Contents:

4 Port PCI RS232 Serial Adapter Card with 16550 UART, 1 x Bracket with 2 DB9 Ports, 1 x Driver CD, 1 x User Manual

Additional Information: Serial ports are on the included dongle cable, so only a single slot is occupied in the system case, making it ideal for space sensitive installations, Broad operating system compatibility with support for Windows(r) or Linux(r) makes this card perfect for installation into mixed environments, Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS, Windows Server® 2012, 2008 R2, 2003, Linux
Compatibility: Plug and Play

Operating System Supported:

Windows 95, Windows 98, Windows Me, Windows 2000, Windows XP, Windows NT 3.1, Windows NT 4, DOS, Linux
Certifications & Standards: Safety Standards North America: FCC, Safety Standards Europe: CE, Safety Standards International: UL
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS, REACH
Country of Origin: China
