Startech.Com Parallel/serial combo card - PCI - parallel, serial - 3 ports - Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot - 2S1P PCI Serial Parallel Combo Card with 16550 UART - PCI RS232 Serial Card plus Paralle

StarTech.com Parallel/serial combo card - PCI - parallel, serial - 3 ports - Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot - 2S1P PCI Serial Parallel Combo Card with 16550 UART - PCI RS232 Serial Card plus Parallel Port - 2x Serial and 1x Parallel Adapter Card / PCI Serial/Parallel Card Adapter / Serial RS232 Adapter Card with Parallel Port - All three ports share only one IRQ which minimizes the system resources required to operate the card - Inclu - RoHS, TAA Compliance

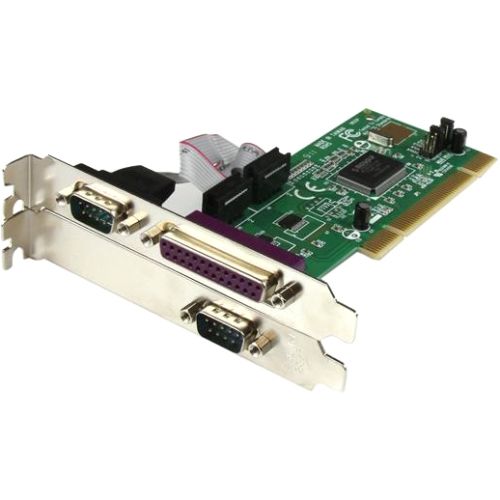

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot. Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy. The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI
Data Transfer Rate: Up to 430kB/s Serial Port
UART Type: 16550
Parallel Port Modes: EPP/ECP
Number of Parallel Ports (External): 1
Number of Serial Ports (External): 1
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 4.7"
Width: 0.8"
Length: 4.7"
Weight (Approximate): 2.30 oz
Package Contents:

2S1P PCI Serial Parallel Combo Card with 16550 UART, 1 x DB9 Ribbon Cable, 3 x Low Profile Brackets, 1 x Driver CD, 1 x Instruction Manual

Additional Information: Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application, All three ports share only one IRQ, minimizing system resources required for the card, Easy to install and use with full step-by-step instruction providing a hassle free serial solution
Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
