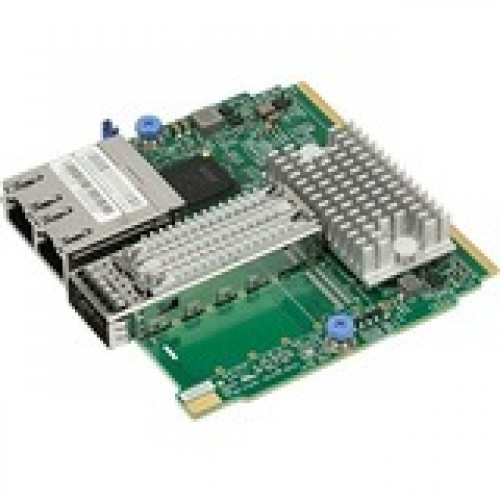

Supermicro 1-Port InfiniBand FDR Adapter - 56 Gbit/s, 40 Gbit/s - 1 x Total Infiniband Port(s) - 2 x Network (RJ-45) Port(s) - QSFP AOC-MHIBF-M1Q2GM-O

Supermicro 1-Port InfiniBand FDR Adapter - 56 Gbit/s, 40 Gbit/s - 1 x Total Infiniband Port(s) - 2 x Network (RJ-45) Port(s) - QSFP

The Ultimate InfiniBand FDR Adapters, in Supermicro Super I/O Module (SIOM) Form FactorThe AOC-MHIBF-m2Q2G and AOC-MHIBF-m1Q2G are the most powerful InfiniBand controllers in the IT market. In small form factor SIOM, available as part of an integrated solution with Supermicro servers, they provide both InfiniBand FDR 56Gbps and 40Gbps Ethernet as well as remote server management through a dedicated Gigabit LAN controller. Based on Mellanox® ConnectX-3 Pro and Intel® i350 controllers, they provide the highest performing and most flexible interconnect solutions for Supermicro servers in Enterprise Data Centers and High-Performance Computing deployments.Key Features: Super I/O Module (SIOM) Form Factor Mellanox® ConnectX-3 Pro InfiniBand FDR controller Dual and Single QSFP connector models Up to 56Gbps InfiniBand or 40Gbps Ethernet Virtual Protocol Interconnect (VPI) VXLAN and NVGRE Intel® i350 GbE controller Dual RJ45 Connectors NC-SI for Remote Management Asset Management Features with thermal sensor RoHS compliant 6/6

Technical Specifications:
Total Number of InfiniBand Ports: 1
Number of Network (RJ-45) Ports: 2
Data Transfer Rate: 56 Gbit/s, 40 Gbit/s
Expansion Slot Type: QSFP
Width: 3.6"
Depth: 3.4"
