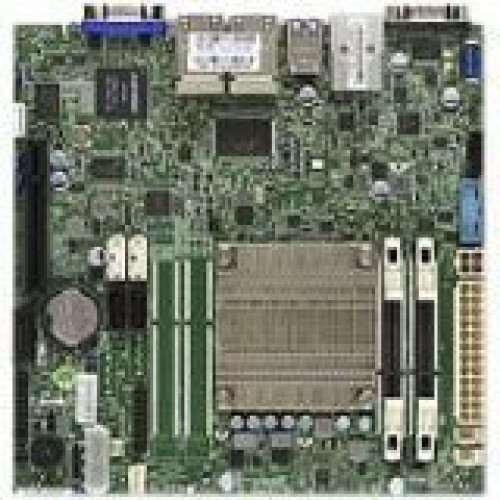

Supermicro A1SRI-2358F Server Motherboard - Intel Chipset - Intel Atom C2358 Dual-core (2 Core) - Retail Pack - Mini ITX - 16 GB DDR3 SDRAM Maximum RAM - 1.33 GHz, 1.60 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial ATA/600 Controller - O

Supermicro A1SRI-2358F Server Motherboard - Intel Chipset - Intel Atom C2358 Dual-core (2 Core) - Retail Pack - Mini ITX - 16 GB DDR3 SDRAM Maximum RAM - 1.33 GHz, 1.60 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial ATA/600 Controller - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x8 Slots - 4 x USB Ports - VGA - 4 x SATA Interfaces

C2000 Series BOARDS (System-on-Chip) Supermicro''s motherboards based on Intel® Atom™ processor C2000 series System-on-Chip (formerly Avoton & Rangeley) are well-suited for entry-level server platforms and embedded IPC market.

Technical Specifications:
Chipset Manufacturer: Intel
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C2358
Integrated Processor Core: Dual-core (2 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 16 GB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1600 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Number of Onboard USB 3.0 Ports: 2
Form Factor: Mini ITX
Width: 6.8"
Depth: 6.8"
Compatibility: Supermicro SuperChassis(s)

1U Chassis:

SC504-203B, SC505-203B

Mini-ITX Chassis:

SC101i

Supermicro SuperServer(s)

Model(s)

SYS-5018A-LTN4
