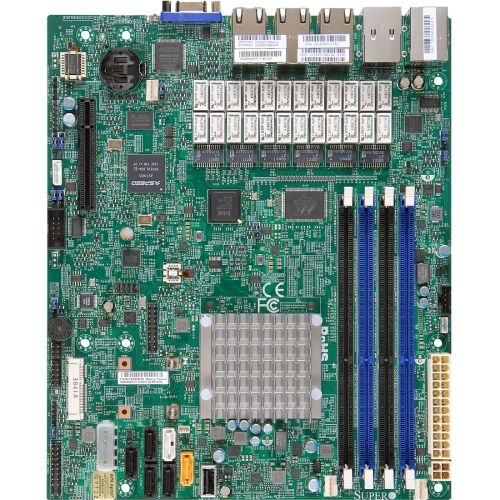

Supermicro A1SRM-LN7F-2758 Server Motherboard - Intel Chipset - Socket BGA-1283 - Intel Atom C2758 Octa-core (8 Core) 2.40 GHz - Retail Pack - Micro ATX - 64 GB DDR3 SDRAM Maximum RAM - 1.33 GHz, 1.60 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory

Supermicro A1SRM-LN7F-2758 Server Motherboard - Intel Chipset - Socket BGA-1283 - Intel Atom C2758 Octa-core (8 Core) 2.40 GHz - Retail Pack - Micro ATX - 64 GB DDR3 SDRAM Maximum RAM - 1.33 GHz, 1.60 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 Controller - On-board Video Chipset - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x8 Slots - 4 x USB Ports - VGA - 6 x SATA Interfaces - TAA Compliance

C2000 Series BOARDS (System-on-Chip) Supermicro''s motherboards based on Intel® Atom™ processor C2000 series System-on-Chip (formerly Avoton & Rangeley) are well-suited for entry-level server platforms and embedded IPC market.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1283
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C2758
Integrated Processor Speed: 2.40 GHz
Integrated Processor Core: Octa-core (8 Core)
Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1600 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
VGA: Yes
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 8"
Compatibility: Supermicro SuperChassis

1U Chassis:

SC813MTQ-202CB, SC510-203B, SC510T-203B, SC512L-260-LCD, SC512L-200B, SC813MTQ-350CB
