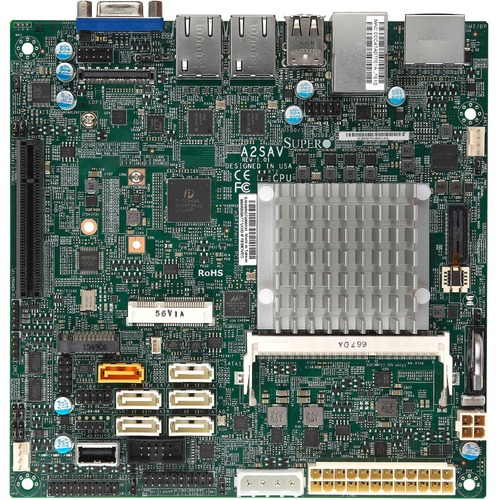

Supermicro A2SAV-L Server Motherboard - Intel Chipset - Socket BGA-1296 - Intel Atom x5-E3940 - 8 GB DDR3L SDRAM Maximum RAM - SoDIMM - 1 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - 2 x RJ-45 - 2 x SATA Interfaces MBD-A2SAV-L-O

Supermicro A2SAV-L Server Motherboard - Intel Chipset - Socket BGA-1296 - Intel Atom x5-E3940 - 8 GB DDR3L SDRAM Maximum RAM - SoDIMM - 1 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - 2 x RJ-45 - 2 x SATA Interfaces

E3900 Series BOARDS (System-on-Chip)Supermicro''s motherboards based on Intel® Atom® processor E3900 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1296
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: x5-E3940
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 1
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Technology: DDR3L SDRAM
Memory Speed Supported: 1866 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD Graphics
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

A2SAV-L Server Motherboard, 1 x I/O Shield, 2 x I/O Cables

Compatibility:

Supermicro Server:

SYS-E200-9AP

Supermicro Chassis:

SC504-203B, SC505-203B

Environmentally Friendly: Yes
Environmental Certification: RoHS
