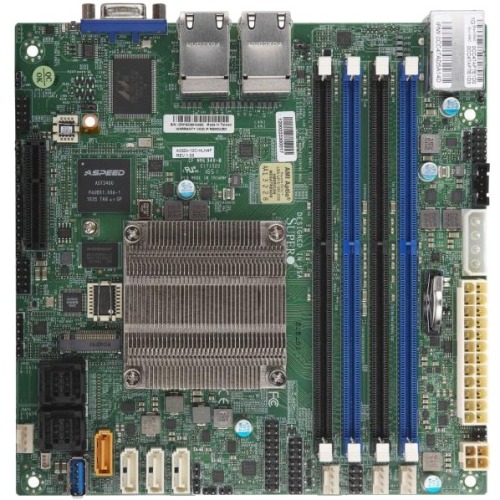

Supermicro A2SDi-16C-HLN4F Server Motherboard - Intel Chipset - Socket BGA-1310 - Intel Atom C3955 Hexadeca-core (16 Core) - 1 x Retail Pack - Mini ITX - 256 GB DDR4 SDRAM Maximum RAM - 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - RDIMM

Supermicro A2SDi-16C-HLN4F Server Motherboard - Intel Chipset - Socket BGA-1310 - Intel Atom C3955 Hexadeca-core (16 Core) - 1 x Retail Pack - Mini ITX - 256 GB DDR4 SDRAM Maximum RAM - 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - RDIMM, UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 Controller - On-board Video Chipset - 1 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x4 Slots - 3 x USB Ports - VGA - 1 x M.2 Interfaces - 12 x SATA Interfaces

Atom® Motherboards C3000 Series BOARDS (System-on-Chip)Supermicro''s motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1310
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3955
Integrated Processor Core: Hexadeca-core (16 Core)
Number of Memory Slots: 4
Memory Form Factor: RDIMM, UDIMM, DIMM
Maximum Memory Supported: 256 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 1
VGA: Yes
Number of SATA Interfaces: 12
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
