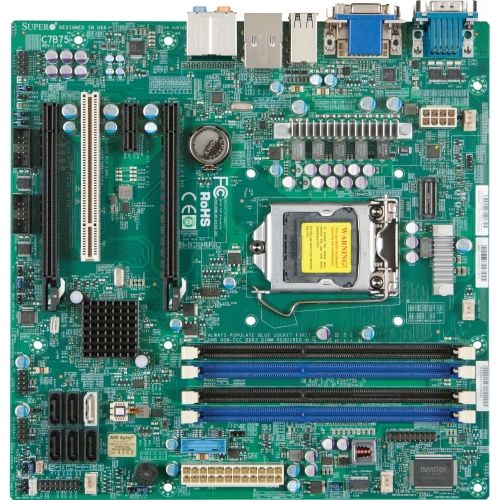

Supermicro C7B75 Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155 - 1 x Bulk Pack - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/300, Serial ATA/60

Supermicro C7B75 Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155 - 1 x Bulk Pack - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/300, Serial ATA/600 Controller - CPU Dependent Video - 2 x USB 3.0 Port - Intel - 7.1 Audio Channels - Gigabit Ethernet - 1 x PCI Express x1 Slots - 2 x PCI Express x16 Slots - 6 x USB Ports - S/PDIF - VGA - DVI - 6 x SATA Interfaces

B75/H61 Chipset / Socket H2 (LGA 1155) BoardsSupermicro motherboards based on the Intel 2nd and 3rd Generation Core™ i7/i5/i3 processor series and Intel B75/H61 chipset. With features that include PCI-E 3.0 slot(s), DDR3 memory, LAN port(s), SATA3 ports, multiple USB ports, integrated audio, and TPM header ready, these boards are Supermicro''s latest premium desktop motherboards that demonstrate huge leaps in quality, performance, and visual processing capabilities.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: B75 Express
Total Processor Supported: 1
Processor Socket: Socket H2 LGA-1155
Processor Supported: Core i3, Core i5, Core i7, Pentium, Celeron
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/300, Serial ATA/600
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
S/PDIF: Yes
VGA: Yes
DVI: Yes
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 8
Number of Onboard USB 3.0 Ports: 2
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
