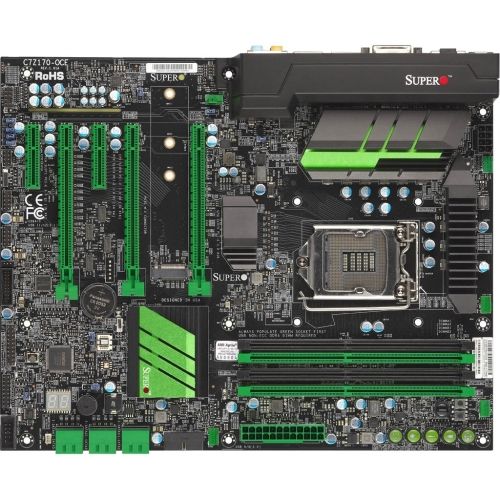

Supermicro C7Z170-OCE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Retail Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 2 x USB 3.0 Port - HDMI

Supermicro C7Z170-OCE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Retail Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 2 x USB 3.0 Port - HDMI - 7.1 Audio Channels - Gigabit Ethernet - 2 x PCI Express x1 Slots - 3 x PCI Express x16 Slots - 5 x USB Ports - DisplayPort - DVI - 6 x SATA Interfaces

Z170 chipset / Socket H4 Boards Supermicro''s new motherboards using Intel Z170 Express Chipset supports 6th generation Core i7/i5/i3 Processors. The Z170 new platform supports overclocking of CPU and Memory with increased performance, with XTU management tool. Ideal applications include gaming, workstation and high frequency trading.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z170
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7, Core i3, Core i5, Celeron, Pentium
Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 1
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 2
Number of Onboard USB 3.1 Ports: 1
Form Factor: ATX
Width: 12"
Depth: 9.6"
Compatibility: Supermicro SuperChassis

Tower / 4U Rackmount: CSE-743TQ-1200B-SQ
