Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter - 12Gb/s SAS - PCI Express - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 2 GB AOM-S3108-H8

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter - 12Gb/s SAS - PCI Express - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 2 GB

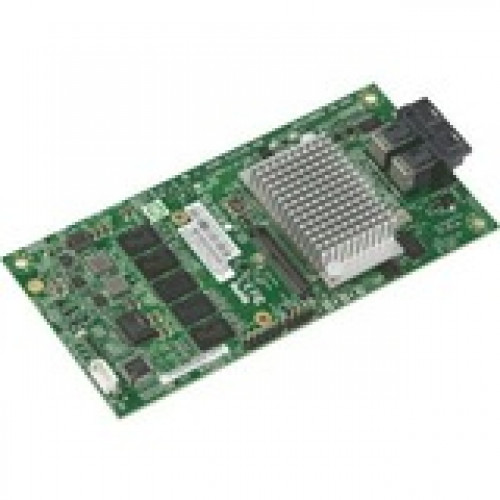

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID AdapterThe Supermicro MegaRAID Low Profile AOM-S3108-H8 features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives. With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures. Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.

Technical Specifications:
Host Interface: PCI Express
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Cache Memory: 2 GB
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
Height: 3"
Depth: 6"
Form Factor: Plug-in Card
Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS
