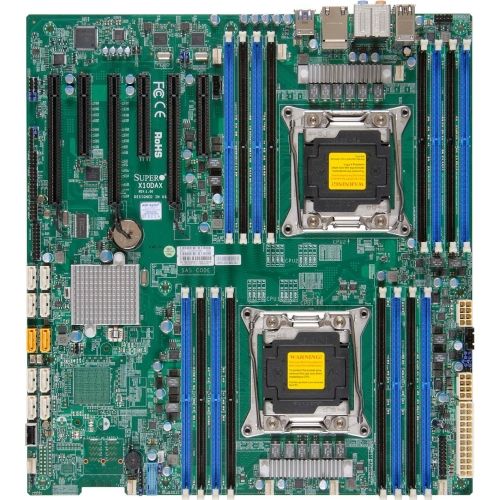

Supermicro X10DAC Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 TB DDR4 SDRAM Maximum RAM - 16 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x RJ-45 - 10 x SATA Interfaces - RoHS Compliance MBD-X10DAC-O

Supermicro X10DAC Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 TB DDR4 SDRAM Maximum RAM - 16 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x RJ-45 - 10 x SATA Interfaces - RoHS Compliance

Xeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro''s latest generation of dual processor motherboard technology based on Intel''s E5-2600 v3 Haswell processor. Supermicro''s X10 motherboards are specifically designed to meet the demanding needs of today''s complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
QuickPath Interconnect: 9.60 GT/s
64-bit Processing: Yes
Number of Memory Slots: 16
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 1 TB
Memory Standard: DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600, 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: No
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC888
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 4
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 10
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.0 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Compatibility: Supermicro SuperChassis

2U Chassis:CSE-213A-R740LPB, CSE-216BAC-R920LPB, CSE-216BE1C-R920LPB, CSE-825TQ-R740LPB, CSE-826BA-R920LPB3U Chassis:CSE-835BTQ-R1K28B, CSE-835TQ-R920B, CSE-836BA-R1K28B, CSE-836BA-R920BMid-Tower:CSE-732D4F-903B, CSE-732i-865BTower / 4U Rackmount:CSE-743TQ-1200B, CSE-745BTQ-R1K28B-SQ, CSE-745TQ-R920B, CSE-747BTQ-R1K62B, CSE-747TG-R1400B-SQ, CSE-846BA-R920B
Certifications & Standards: ACPI 4.0, CE, FCC
Environmentally Friendly: Yes
Environmental Certification: RoHS
