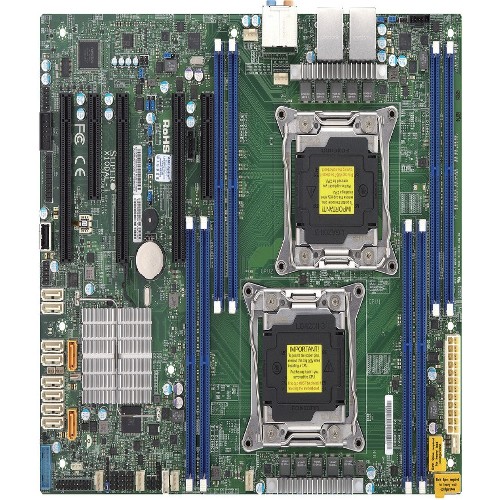

Supermicro X10DAL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 10 x SATA Interfaces MBD-X10DAL-I-B

Supermicro X10DAL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 10 x SATA Interfaces

DP Xeon® Motherboards - Socket R3 (LGA 2011)X10 DP Motherboard Selection Assistant ToolXeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro''s latest generation of dual processor motherboard technology based on Intel''s E5-2600 v4 Broadwell / v3 Haswell processor. Supermicro''s X10 motherboards are specifically designed to meet the demanding needs of today''s complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 1
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 1 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2400 MHz, 2133 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 10"
Compatibility: Supermicro SuperChassis:

2U Chassis:

SC213LT-600LPB, SC825TQ-600LPB

Mid/Mini Tower Chassis:

SC732D4-500B, SC733TQ-665B

4U / Tower Chassis:

SC743T-665B, SC743TQ-865B-SQ
