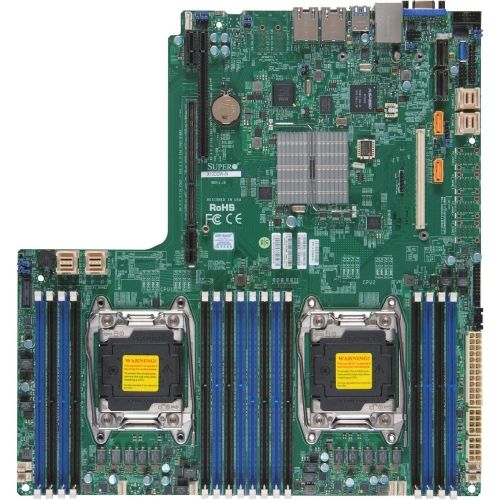

Supermicro X10DDW-iN Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Bulk Pack - Proprietary Form Factor - 2 x Processor Support - 2 TB DDR4 SDRAM Maximum RAM - 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - RDIMM, LRDIMM, DIMM

Supermicro X10DDW-iN Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Bulk Pack - Proprietary Form Factor - 2 x Processor Support - 2 TB DDR4 SDRAM Maximum RAM - 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - RDIMM, LRDIMM, DIMM - 16 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x8 Slots - 4 x USB Ports - VGA - 10 x SATA Interfaces

Xeon® E5 Family BOARDS / Socket R3 (LGA 2011)Introducing Supermicro''s latest generation of dual processor motherboard technology based on Intel''s E5-2600 v4 Broadwell / v3 Haswell processor. Supermicro''s X10 motherboards are specifically designed to meet the demanding needs of today''s complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
Number of Memory Slots: 16
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x32 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 1
Form Factor: Proprietary Form Factor
Width: 13.4"
Depth: 12.8"
Compatibility: Supermicro SuperChassis(s)

1U Chassis:

SC113TQ-600WB, SC815TQ-600WB, SC801SFT-656D, SC801ST-656D

2U Chassis:

SC825TQ-R740WB, SC826BA-R920WB, SC213A-R740WB, SC826BAC4-R920WB, SC216BA-R920WB

Environmentally Friendly: Yes
Environmental Certification: RoHS
