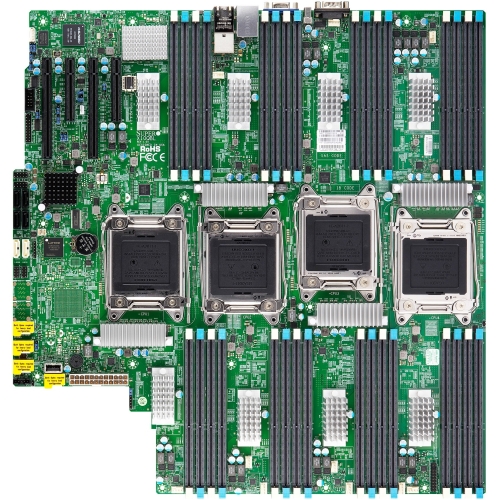

Supermicro X10QBL-CT Server Motherboard - Intel Chipset - Socket R LGA-2011 - 2 TB DDR3 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 32 x Memory Slots - 6 x SATA Interfaces MBD-X10QBL-CT-O

Supermicro X10QBL-CT Server Motherboard - Intel Chipset - Socket R LGA-2011 - 2 TB DDR3 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 32 x Memory Slots - 6 x SATA Interfaces

E7-2800/4800/8800 series based BoardSupermicro motherboard based on the Intel® C602J series chipset support Intel''s Xeon® processor (MP) E7-2800/4800/8800 C602J family with QPI up to 8GT/s, up to 11x PCI-E 3.0 slots, up to 6TB DDR3 memory, 2x 10GBase-T LAN, and integrated IPMI 2.0. They are leading performance boards for high performance server computing, virtualization and communication applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C602-J
Total Processor Supported: 4
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
Number of Memory Slots: 32
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
Controller Type: Serial ATA/300, Serial ATA/600, 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: 2400
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 3
VGA: Yes
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Number of Onboard USB 3.0 Ports: 3
Form Factor: Proprietary Form Factor
Width: 16.8"
Depth: 16.4"
