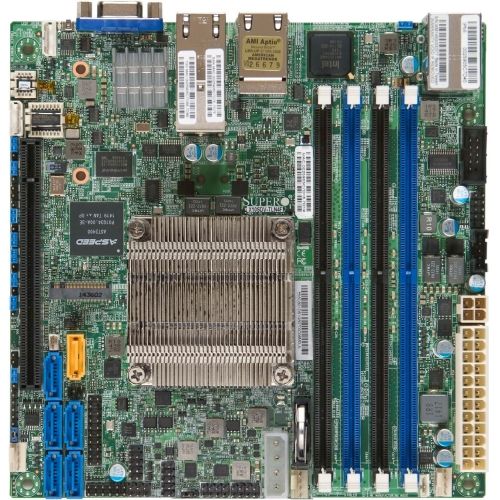

Supermicro X10SDV-12C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Xeon D-1557 Dodeca-core (12 Core) - Retail Pack - Mini ITX - 128 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - UDIMM, RDIMM, DIMM

Supermicro X10SDV-12C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Xeon D-1557 Dodeca-core (12 Core) - Retail Pack - Mini ITX - 128 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 Controller - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 10Gigabit Ethernet - 1 x PCI Express x16 Slots - 2 x USB Ports - VGA - 1 x M.2 Interfaces - 6 x SATA Interfaces

X10SDV Embedded Boards / Xeon D SoC BGA Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1667
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-1557
Integrated Processor Core: Dodeca-core (12 Core)
Number of Memory Slots: 4
Memory Form Factor: UDIMM, RDIMM, DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 5
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Compatibility:

Supermicro SuperChassis

1U Chassis:

SC504-203B, SC505-203B

Environmentally Friendly: Yes
Environmental Certification: RoHS
