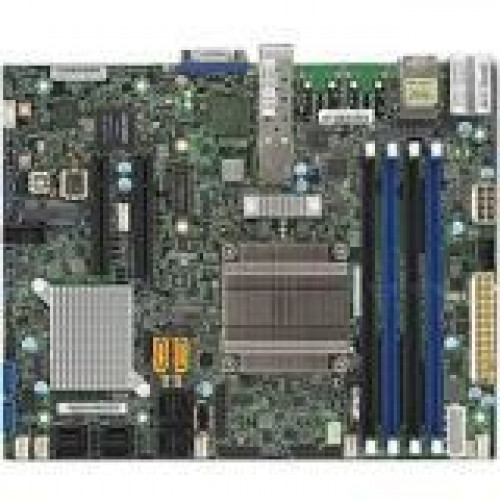

Supermicro X10SDV-2C-7TP4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Pentium D1508 - 1 x Retail Pack - Flex ATX - 128 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 1.60 GHz Memory Speed Supported - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Serial

Supermicro X10SDV-2C-7TP4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Pentium D1508 - 1 x Retail Pack - Flex ATX - 128 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 1.60 GHz Memory Speed Supported - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Serial ATA/600, 6Gb/s SAS RAID Supported Controller - 0, 1, 5, 10 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x8 Slots - 2 x USB Ports - VGA - 4 x SATA Interfaces

X10SDV Embedded Boards / Xeon D SoC BGA Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1667
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Pentium
Integrated Processor Model: D1508
Number of Memory Slots: 4
Memory Form Factor: UDIMM, RDIMM, DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600, 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 2
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 4
Number of SAS Interfaces: 16
Total Number of Onboard USB Ports: 5
Form Factor: Flex ATX
Width: 9"
Depth: 7.3"
Compatibility: Supermicro SuperChassis

1U Chassis:

SC504-203B, SC505-203B, SC514-505, SC515-R407, SC813MTQ-350CB

Environmentally Friendly: Yes
Environmental Certification: RoHS
