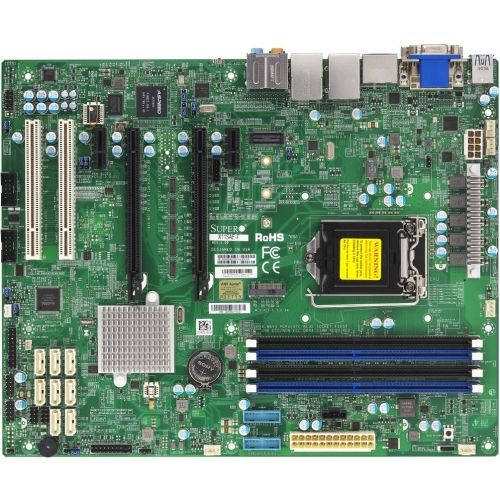

Supermicro X11SAE-F Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Bulk Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 2.13 GHz, 1.60 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory Slots - Serial A

Supermicro X11SAE-F Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Bulk Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 2.13 GHz, 1.60 GHz Memory Speed Supported - UDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - HDMI - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x1 Slots - 2 x PCI Express x16 Slots - 6 x USB Ports - VGA - DisplayPort - D

Supermicro UP Motherboards - Best Power & Performance with Improved I/O Supermicro X11 Skylake UP Serverboards provide substantial performance and efficiency improvements over previous generations, including support for the latest Intel® Xeon® processor E3-1200 v5 product family that provides a 15% efficiency / performance increase; DDR4 memory implementation that delivers a 14%+ performance improvement over DDR3 memory; all PCI-E implementation that achieves a PCI-E 3.0 8Gbps bus speed or a 60% performance enhancement over 5Gbps PCI-E 2.0; and all SATA3 implementation bringing a 6Gbps storage data rate or a 100% performance increase from the 3Gbps of SATA2. In addition memory capacity is doubled from 32GB of DDR3 to 64GB of ECC DDR4 memory, a 100% increase. Additional Supermicro advanced technologies enhancing the X11 Skylake UP Serverboard product line include NVMe, Dual 10GBase-T, Dual/Quad Gigabit LAN, IPMI 2.0, VHD, M.2, PCI-E 3.0 x16 slots to support GPU/Xeon Phi™ cards, up to 7 expansion slots, Supermicro WIO (Wide I/O) technology, and 7-year long-life for embedded applications. Supermicro X11 Skylake UP Serverboards are available in a wide variety of options including uATX and ATX and WIO form factors; value, performance, and feature-rich models; with multiple PCI-E, USB, IPMI, LAN, and storage configurations available to fit the most demanding customer applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7, Core i3, Core i5, Xeon, Celeron, Pentium
Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2133 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 8
Number of Onboard USB 3.0 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
Compatibility: Supermicro SuperChassis:

Mid/Mini-Tower:

SC732D4-903B, SC732D4-865B

4U/Tower:

SC743TQ-1200B-SQ

Environmentally Friendly: Yes
Environmental Certification: RoHS
