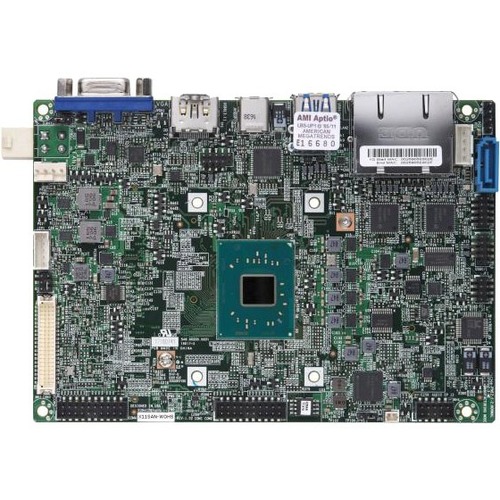

Supermicro X11SAN-WOHS Desktop Motherboard - Intel Chipset - Socket BGA-1296 - Intel Pentium N4200 - 8 GB DDR3L SDRAM Maximum RAM - DDR3L-1866/PC3-14900 - SoDIMM - 1 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - 2 x RJ-45 - 1 x SATA Interf

Supermicro X11SAN-WOHS Desktop Motherboard - Intel Chipset - Socket BGA-1296 - Intel Pentium N4200 - 8 GB DDR3L SDRAM Maximum RAM - DDR3L-1866/PC3-14900 - SoDIMM - 1 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - 2 x RJ-45 - 1 x SATA Interfaces

X11SAN W/O HEATSINK 3.5 SBC

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1296
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Pentium
Integrated Processor Model: N4200
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 1
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Standard: DDR3L-1866/PC3-14900
Memory Technology: DDR3L SDRAM
Memory Speed Supported: 1866 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD Graphics
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 2
VGA: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Form Factor: 3.5" SBC
Width: 5.7"
Depth: 4"
Package Contents:

X11SAN-WOHS Desktop Motherboard , 1 x Audio Cable, 1 x COM Cable, 1 x SATA Power Cable, 1 x USB Cable, 1 x SATA Cable, 1 x Quick Reference Guide

Compatibility:

SuperServer:

SYS-E100-9APP

Environmentally Friendly: Yes
Environmental Certification: RoHS
