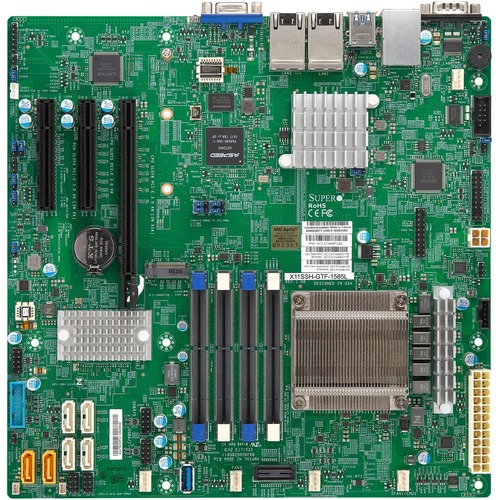

Supermicro X11SSH-GF-1585 Server Motherboard - Intel Chipset - Socket BGA-1440 - Intel Xeon E3-1585 v5 Quad-core (4 Core) - 1 x Retail Pack - Micro ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 1.60 GHz, 2.13 GHz Memory Speed Supp

Supermicro X11SSH-GF-1585 Server Motherboard - Intel Chipset - Socket BGA-1440 - Intel Xeon E3-1585 v5 Quad-core (4 Core) - 1 x Retail Pack - Micro ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 1.60 GHz, 2.13 GHz Memory Speed Supported - SoDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x8 Slots - 1 x PCI Express x16 Slots -

UP Xeon® Motherboards - Socket FCBGA 1440 Xeon E3-1500 v5 Family Boards / FCBGA 1440Introducing Supermicro''s latest single processor design which features the Intel C236/CM236 chipset and supports an onboard Intel Xeon E3-1500 v5 series BGA processor. The new 14nm microarchitecture offers up to 32GB of fast DDR4 SO-DIMM in 2 slots, 12V DC input, onboard IPMI or AMT vPro, USB3.0, M.2, mini PCI-E, PCI-E 3.0 x16, and SATA 3.0 (6Gbps) HDD. The BGA processor also provides GT4e Iris Pro graphics for outstanding 4K HD graphics performance, improved media hardware acceleration (VHD), up to 128MB eDRAM for increased system efficiency, all while keeping power consumption to a minimum.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket BGA-1440
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: E3-1585 v5
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 4
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 1600 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 9
Number of Onboard USB 3.0 Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility: Supermicro SuperChassis

1U:

SC813MFTQC-350CB, SC813MFTQC-R407CB, SC113MFAC2-605CB, SC113MFAC2-R606CB, SC512F-350B, SC813MTQ-350CB

2U:

SC823TQ-653LPB, SC213LT-563LPB

3U:

SC833T-653B

Mid/Mini-Tower:

SC731i-300B, SC732I-500B

4U/Tower:

SC842i-500B
