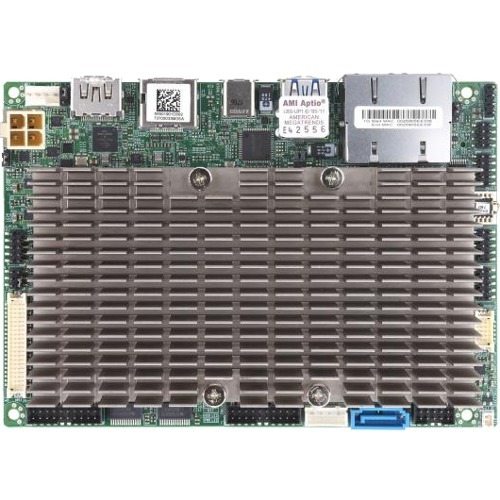

Supermicro X11SSN-E-VDC Single Board Computer Motherboard - Intel Chipset - Socket BGA-1356 - Intel Core i5 i5-7300U - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 1 x USB 3.1 Port - HDMI - 1 x SATA Inte

Supermicro X11SSN-E-VDC Single Board Computer Motherboard - Intel Chipset - Socket BGA-1356 - Intel Core i5 i5-7300U - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 1 x USB 3.1 Port - HDMI - 1 x SATA Interfaces

7th Generation Intel® Core™ U-Series multi-chip package (MCP) of FCBGA1356 BoardsSupermicro''s single processor Socket FCBGA1356 MCP feature the Intel® 7th Generation Core™ i7/i5/i3 processor ultra-low-power U-series. Outstanding features include up to 32GB of fast DDR4 DRAM in 2 DIMMS, USB 3.0/USB 3.1, M.2, Mini-PCIe, and SATA 3.0 (6Gbps) HDD. Support for next generation graphics controller, 4K HD graphics resolution and 3 displays with LVDS, HDMI and DP ports. Ideal for small, energy-efficient, reliability, manageability and long life applications.

Technical Specifications:
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1356
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Core i5
Integrated Processor Model: i5-7300U
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD Graphics
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 1
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Form Factor: 3.5" SBC
Width: 5.7"
Depth: 4"
Package Contents:

X11SSN-E-VDC Single Board Computer Motherboard, 1 x SATA Power Cable, 1 x SATA Cable, 1 x Passive Heatsink

Environmentally Friendly: Yes
Environmental Certification: RoHS
