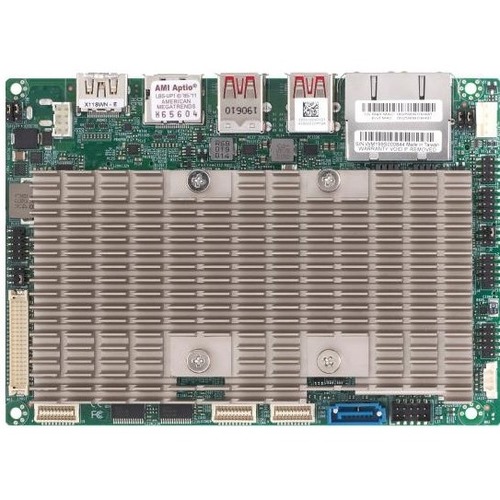

Supermicro X11SWN-H Server Motherboard - Socket BGA-1528 - Intel Core i7 i7-8665UE - 64 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 2 x RJ-45 - 1 x SATA Interfaces MBD-X11SWN-H-B

Supermicro X11SWN-H Server Motherboard - Socket BGA-1528 - Intel Core i7 i7-8665UE - 64 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 2 x RJ-45 - 1 x SATA Interfaces

NR X11SWN-H EMDEDDED 3.5 SBC

Technical Specifications:
Processor Socket: Socket BGA-1528
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Core i7
Integrated Processor Model: i7-8665UE
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: UHD Graphics 620
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Form Factor: 3.5" SBC
Width: 5.7"
Depth: 4"
Package Contents:

X11SWN-H Server Motherboard, 1 x SATA Power Cable, 1 x SATA cable, 1 x Passive Heatsink, 1 x DC IN Power Cable

Environmentally Friendly: Yes
Environmental Certification: RoHS
