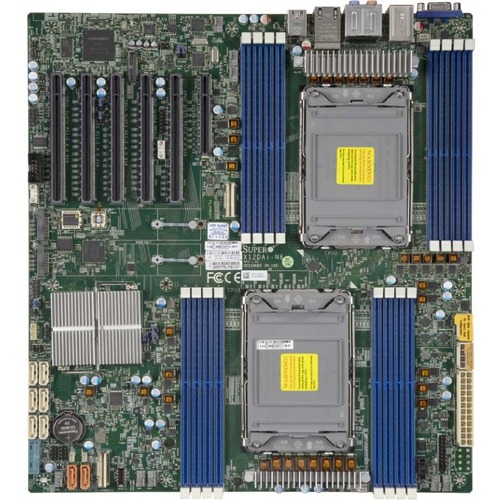

Supermicro X12DAI-N6 Server Motherboard - Intel Chipset - Socket P - Intel Optane Memory Ready - Extended ATX - Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum Processor Supported - 6 TB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 16 x Memory Slots

Supermicro X12DAI-N6 Server Motherboard - Intel Chipset - Socket P - Intel Optane Memory Ready - Extended ATX - Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum Processor Supported - 6 TB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 16 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621A
Total Processor Supported: 2
Processor Socket: Socket P
Processor Generation Supported: 3rd Gen
Processor Supported: Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum
Number of Memory Slots: 16
Memory Form Factor: DIMM, RDIMM, LRDIMM
Maximum Memory Supported: 6 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz, 2933 MHz, 2666 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2600
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 5
Total Number of USB Ports: 5
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.2 Ports: 3
Form Factor: Extended ATX
Width: 13"
Depth: 12"
Package Contents:

X12DAI-N6 Server Motherboard, 2 x CPU Carrier, 2 x I/O Cables, 1 x I/O Shield, 1 x X12DAi-N6 Quick Reference Guide

Compatibility:

4U/Tower Chassis:

SC745BAC-R1K23B-SQ, SC745BTS-R1K23BP3

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: RoHS
