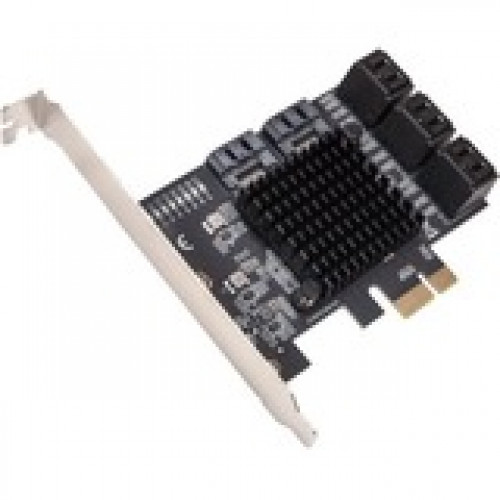

SYBA Multimedia 8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SI-PEX40165 - Serial ATA/600 - PCI Express 3.0 x1 - Plug-in Card - 8 Total SATA Port(s) - 8 SATA Port(s) Internal - PC, Mac, Linux SI-PEX40165

SYBA Multimedia 8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SI-PEX40165 - Serial ATA/600 - PCI Express 3.0 x1 - Plug-in Card - 8 Total SATA Port(s) - 8 SATA Port(s) Internal - PC, Mac, Linux

Supports 8 port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state. ASM1064, a SATA host controller(AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It''s a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, ASM1064 can enable users to build up various high speed IO systems, including server, high capacity system storage or surveillance platforms.

Technical Specifications:
Host Interface: PCI Express 3.0 x1
Controller Type: Serial ATA/600
RAID Supported: No
Operating System Supported: Linux, Mac OS, Windows 10
Total Number of SATA Ports: 8
Number of SATA Ports (Internal): 8
Height: 4.8"
Length: 6"
Form Factor: Plug-in Card
Package Contents:

8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SI-PEX40165, 4 x SATA Cables (18"), 1 x User's Manual, 1 x Low-Profile Bracket

Platform Supported: PC, Mac, Linux
Environmentally Friendly: Yes
Environmental Certification: WEEE
