Taoglas Apex White Straight TG.30 Ultra-Wideband 4G LTE Antenna - 698 MHz, 1.71 GHz, 700 MHz, 824 MHz, 700 MHz, 1.71 GHz, 2.40 GHz to 960 MHz, 1.58 GHz, 2.70 GHz, 800 MHz, 960 MHz, 2.70 GHz, 2.17 GHz, 2.70 GHz - 6.5 dBi - Outdoor, GPS, Wireless Data Netwo

Taoglas Apex White Straight TG.30 Ultra-Wideband 4G LTE Antenna - 698 MHz, 1.71 GHz, 700 MHz, 824 MHz, 700 MHz, 1.71 GHz, 2.40 GHz to 960 MHz, 1.58 GHz, 2.70 GHz, 800 MHz, 960 MHz, 2.70 GHz, 2.17 GHz, 2.70 GHz - 6.5 dBi - Outdoor, GPS, Wireless Data Network - White - Whip - Omni-directional - SMA Connector

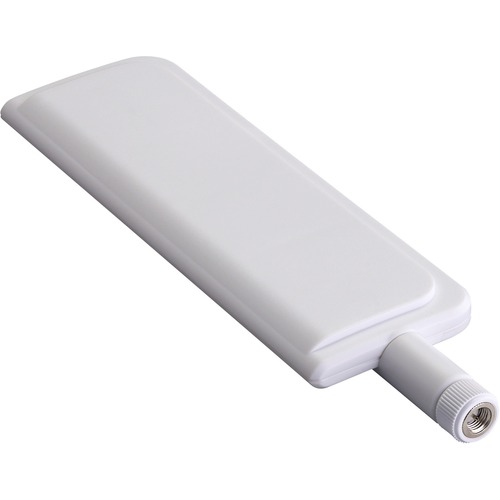

The Apex White Straight TG.30 Dipole LTE Antenna is primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (4G/3G/2G) bands worldwide for access points, terminals and routers. The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated around the connector. The Apex exhibits high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, WiFi and even has GPS included for Assisted GPS and/or E911 applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type approval or carrier certification requirements from a RF standpoint. It is an omnidirectional antenna and the radiation patterns display this and are stable across all bands.It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals. The swivel mechanism allows the antenna part itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems or when other TG.30 antennas are present on the same device. This patented antenna is also available in Black; hinged and right angled versions.
