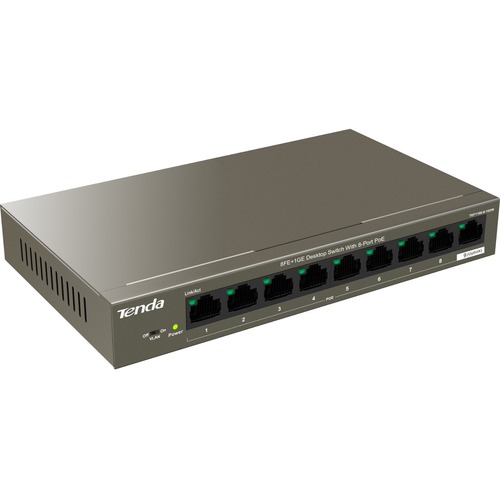

Tenda 8FE+1GE Desktop Switch With 8-Port PoE - 9 Ports - Manageable - 2 Layer Supported - 30 W PoE Budget - Twisted Pair - PoE Ports - Desktop TEF1109TP-8-102W

TEF1109TP-8-102W is an 8FE+1GE Desktop Switch With 8-Port PoE developed by Tenda. It provides 8 10/100M RJ45 ports and 1 gigabit port, Ports 1-8 support IEEE 802.3af PoE standard with each port providing power of 15.4W, or support IEEE 802.3at PoE+ standard with each port providing power of 30W. The whole device can provide power of up to 92W. By using CAT5e twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on. In addition, uplink port supports lightning protection of 6kV and Ports 1-8 support long distance data transmission and powering of 250m, which decreases deployment difficulty and time thus decreases cost. Born for Small and Medium-sized HD IP Surveillance Projects The Gigabit Uplink Port To Guarantee the Transmission Smooth and StableIt provides 8 10/100M RJ45 ports and 1 gigabit port. By using CAT5e twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on, fully loaded. Transmission Distance up to 250mWith the extension technology,data can be transmitted through 250 meters cable which would be a cost-effective replacement for extenders and optical fibers. Excellent Lightning Protection The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable. What''s Special for TEF1109TP-8-102W : Simple Port VLAN Setup With VLAN Mode on , ports 1 to 8 are isolated from each other, enabling the switch to isolate broadcast storm, improving LAN security and data transmission. What''s Special for TEF1109TP-8-102W : Enjoy Super HD Video Screen Equipped with 1024KB large packet buffer, it ensures smooth streaming even when eight HD IP cameras of 500W are working simultaneously. Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload It includes chips with smart power management function and integrated professional chip control algorithm, which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment. Outstanding PoE Power Supply Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
