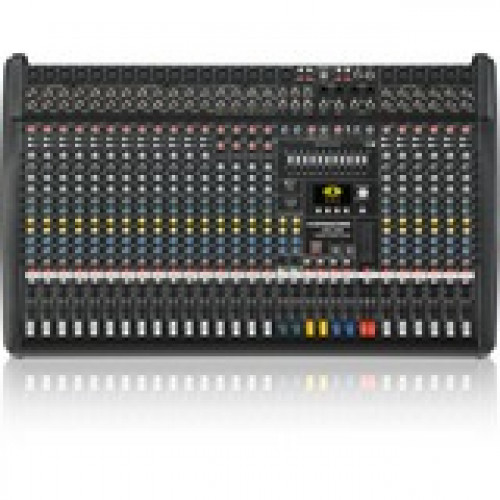

The Bosch Group Dynacord 22-channel Compact Mixing System - Digital - 22 Channel(s) - 2 Effects(s) - MIDI Input, MIDI Output - USB DC-CMS2200-3-MIG

Dynacord 22-channel Compact Mixing System - Digital - 22 Channel(s) - 2 Effects(s) - MIDI Input, MIDI Output - USB

Intuitive mixer with 22 input channels (18 Mic/Line + 4 Mic/Stereo-Line) 2 High-Quality editable effects, 100 factory and 20 user presets Professional 4x4 24-bit / 96 kHz USB interface with MIDI 11 band stereo graphic equalizer The Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector. The mixing section starts with 22 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories. The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package. The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels. For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.

Technical Specifications:
Operation Type: Digital
Number of Channels: 22
MIDI Type: MIDI Input, MIDI Output
Number of Effects: 2
Effects Type: EQ
Minimum Frequency Response: 15 Hz
Maximum Frequency Response: 70 kHz
Built-in Effects: Yes
Number of EQ Bands: 11
Platform Supported: PC, Mac
Headphone: Yes
Microphone: Yes
XLR In: Yes
XLR Out: Yes
RCA Audio In: Yes
USB: Yes
Input Voltage: 120 V AC, 230 V AC
Maximum Power Consumption: 80 W
Height: 6.1"
Width: 32.2"
Depth: 19.6"
Weight (Approximate): 31.97 lb
Application/Usage: PC, Mac
Country of Origin: Germany
